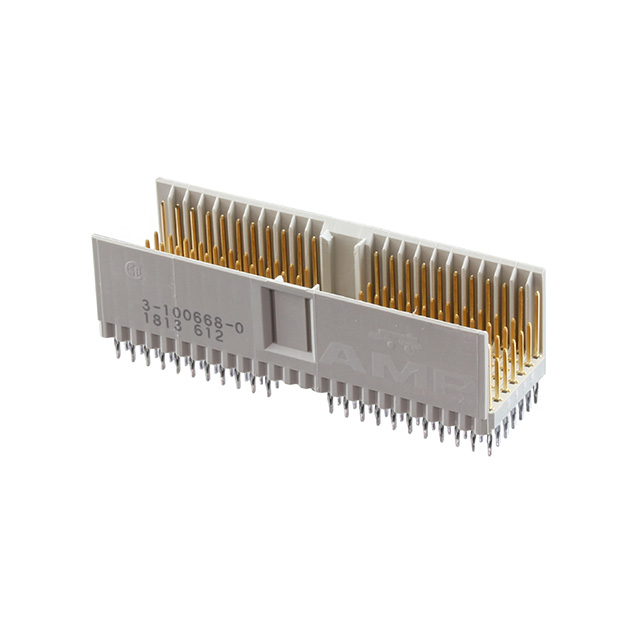

3-100668-0
ActiveTE Connectivity AMP Connectors
CONN HEADER 154POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
3-100668-0
ActiveTE Connectivity AMP Connectors
CONN HEADER 154POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-100668-0 | 100668 Series |
|---|---|---|
| Connector Style | A 22 | A 22 |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Features | Board Guide | Board Guide |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 154 | 154 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2, 5 | 2 - 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 500 VAC | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.91 | |
| 10 | $ 12.64 | |||
| 30 | $ 12.30 | |||
| 50 | $ 11.83 | |||
100668 Series
CONN HEADER 154POS 2MM PRESS-FIT
| Part | Current Rating (Amps) | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Mounting Type | Features | Number of Rows | Voltage Rating | Termination | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-100668-0 | 1.5 A | Header, Male Pins | -55 °C | 125 °C | 0.079 in | 2 mm | 154 | Gold | Through Hole | Board Guide | 2, 5 | 500 VAC | Press-Fit | All | 0.76 Ám | 30 Áin | A 22 | Backplane |
TE Connectivity AMP Connectors 100668-1 | 1.5 A | Header, Male Pins | -55 °C | 125 °C | 0.079 in | 2 mm | 154 | Gold | Through Hole | Board Guide | 2, 5 | 500 VAC | Press-Fit | All | 0.76 Ám | 30 Áin | A 22 | Backplane |
Description
General part information
100668 Series
154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
