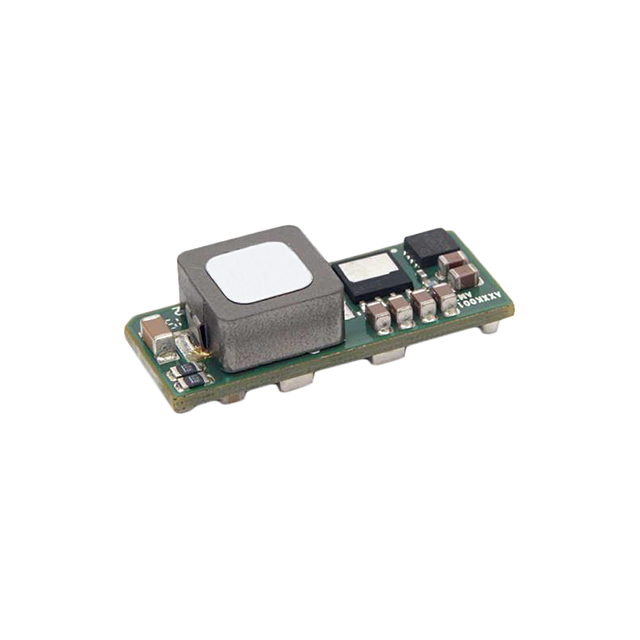

ABXS001A4X41-SRZ

Active

OmniOn Power™

DC DC CONVERTER 32-54V 65W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 32-54V 65W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 32-54V 65W

Part	Features	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Type	Efficiency	Control Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs	Supplier Device Package
OmniOn Power™ ABXS001A4X41-SRZ	OCP, OTP, Remote On/Off, UVLO	ITE (Commercial)	11.4 mm	27.9 mm	1.1 "	0.45 in	8.4 mm	0.33 in	65 W	Surface Mount	16 V	8-SMD Module	Non-Isolated PoL Module	93.8 %	Active Low, Enable	1.35 A	8 V	85 °C	-40 °C	32 V	54 V	1	8-SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 32 ~ 54V 1.35A 8V - 16V Input
