MN19BB1W01-RE

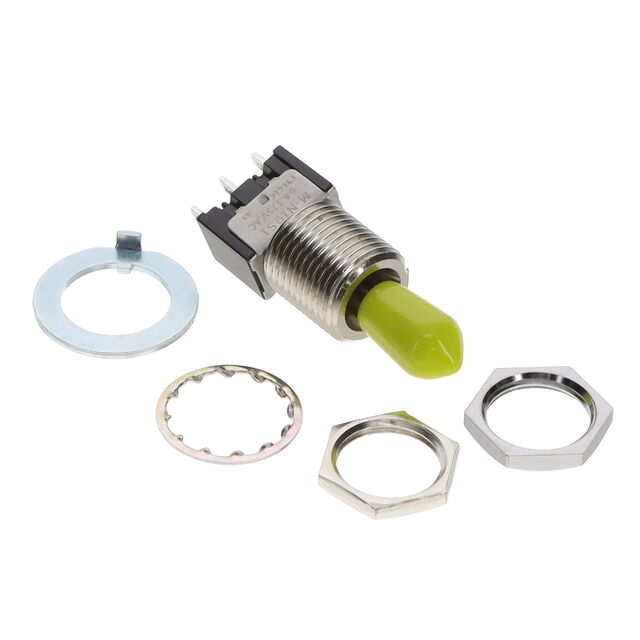

Toggle Switch SPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MN19BB1W01-RE |
|---|---|
| Actuator Length | 11.5 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Standard Round with Cap |
| Bushing Thread | M12 x 1 |
| Bushing Thread Diameter | 12 mm |
| Bushing Thread Pitch | 1 mm |
| Circuit | SPDT |
| Current Rating | 6 A, 3 A |
| Electrical Life (Cycles) | 25000 |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 12.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
