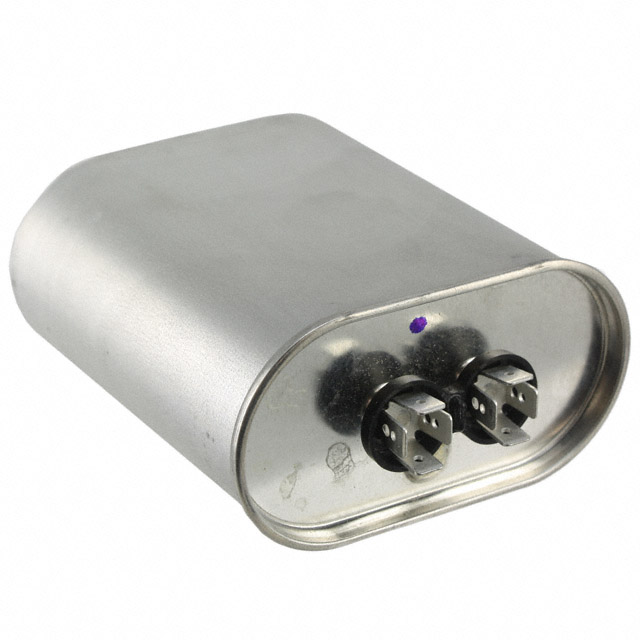

SFD44S45K391B-F
ObsoleteCornell Dubilier Knowles
CAP FILM 45UF 10% 440VAC RADIAL
SFD44S45K391B-F
ObsoleteCornell Dubilier Knowles
CAP FILM 45UF 10% 440VAC RADIAL
Description
General part information
SFD44S45K391B-F
45 µF Film Capacitor 440V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | SFD44S45K391B-F |
|---|---|
| Applications | Motor Run |
| Capacitance | 45 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 4.03 in |
| Lead Spacing | 0.81 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 3.66 in |
| Size / Dimension Width | 1.97 in |
| Termination | Disconnect, Quick Connect |
| Tolerance | 10 % |
| Voltage Rating - AC | 440 V |
