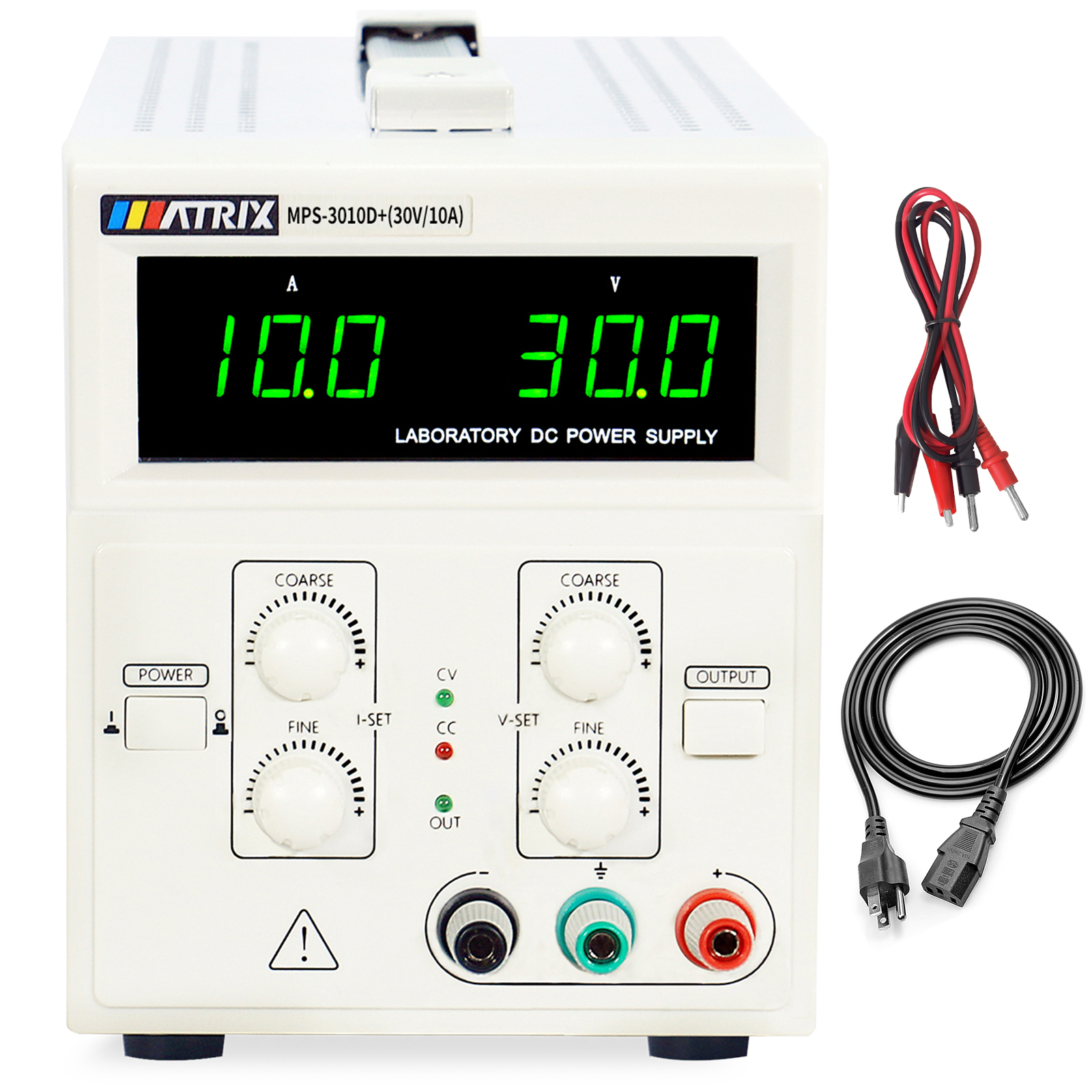

MPS-3010D+
ActiveMATRIX TECHNOLOGY INC.
LINEAR DC POWER SUPPLY 30V 10A
MPS-3010D+
ActiveMATRIX TECHNOLOGY INC.
LINEAR DC POWER SUPPLY 30V 10A
Description
General part information
MPS-3010D+
0 ~ 30V Output Bench (AC to DC) Power Supply 0 ~ 10A Output 520W Features
Technical Specifications
Parameters and characteristics for this part
| Specification | MPS-3010D+ |
|---|---|
| Accuracy - Device Types | Ammeter, Voltmeter |
| Accuracy (Digits) | 2 digits |
| Accuracy (Percent) | 0.2 % |
| Current - Output (Max) | 10 A |
| Current - Output (Min) | 0 A |
| Current Regulation - Line (Percentage) | 0.2 % |
| Current Regulation - Line (Tolerance) | 1 digits |
| Current Regulation - Load | 0.2 % |
| Current Regulation - Load Tolerance | 1 digits |
| Display Type | LED |
| Features | Test Leads, Constant Current and Constant Voltage Indicators, Linear |
| Number of Characters | 6 characters, 3 characters |
| Number of Outputs | 1 |
| Power (Watts) | 520 W, 300 W |
| Ripple Current (RMS) | 10 mA |
| Ripple Voltage (RMS) | 3 mV |
| Size / Dimension Height | 5.118 in |
| Size / Dimension Length | 6.299 in |
| Size / Dimension Width | 11.024 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 30 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 220 VAC, 110 VAC |
| Voltage - Supply | 220VAC, 110VAC |
| Voltage - Supply (Maximum) | 220 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
| Voltage Regulation - Line (Absolute) | 10 mV |
| Voltage Regulation - Line (Percentage) | 0.02 |
| Voltage Regulation - Load (Percentage) | 0.02 % |
| Voltage Regulation - Load (Voltage Offset) | 10 mV |
