General part information
ANT-20228WB56

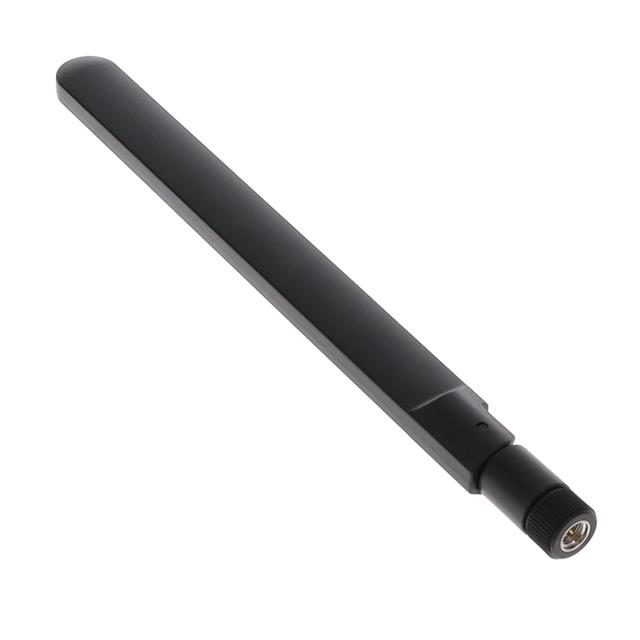

RF ANTENNA 2G, 3G, 4G, 5G, LPWA Whip, Tilt SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-20228WB56 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | 2G, 3G, LPWA, 5G, 4G |
| Frequency (Center/Band) | 4.5GHz, 2.05GHz, 780MHz |
| Frequency (Center/Band) - 1 | 780 MHz |
| Frequency (Center/Band) - 2 | 2.05 GHz |
| Frequency (Center/Band) - 3 | 4.5 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 600 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.4 GHz |
| Frequency Range (Band 3) Maximum | 6 GHz |
| Frequency Range (Band 3) Minimum | 3 GHz |
| Gain | -3 dBi, 1 dBi, 4.5 dBi, 5 dBi, 6 dBi, 0.5 dBi |
| Height (Max) | 7.598 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max | 5 VA |
| Return Loss | -5dB, -3.5dB |
| Return Loss | -5 dB, -3.5 dB |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 4, 5 |
| VSWR Maximum | 5 |
| VSWR Minimum | 4 |
