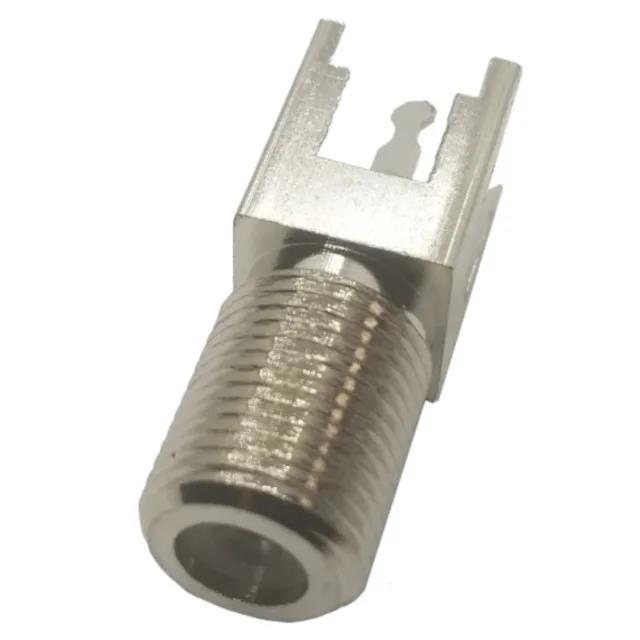

FSF54LNP
ActiveLighthorse Technologies, Inc
F JACK PCB SOLDER TAB 75 OHM
FSF54LNP
ActiveLighthorse Technologies, Inc
F JACK PCB SOLDER TAB 75 OHM
Description
General part information
FSF54LNP
F Type Connector Jack, Female Socket 75 Ohms Through Hole Solder Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | FSF54LNP |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Connector Style | F Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Tab |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
