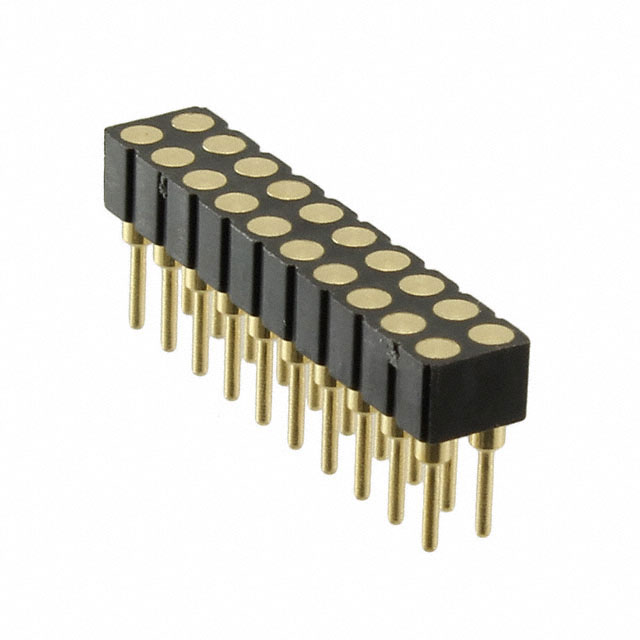

Specification	832-10-020-10-003000

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Material	Brass Alloy
Mounting Type	Through Hole
Number of Contacts	20
Number of Rows	2
Pitch	0.079 in
Row Spacing	0.079 in

832-10 Series

...

Part	Insulation Height	Shrouding	Style	Contact Material	Contact Finish - Mating	Contact Finish - Post	Termination	Connector Type	Pitch - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Contact Type	Insulation Color	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Positions	Row Spacing - Mating	Number of Rows	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Length - Post	Overall Contact Length	Contact Finish Thickness	Row Spacing	Number of Contacts	Pitch	Contact Finish	Material
Mill-Max Manufacturing Corp. 832-10-078-30-052000	0.276 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Surface Mount	Male Pin	Black	10 µin	All	78	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin
Mill-Max Manufacturing Corp. 832-10-092-10-052000	0.291 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Through Hole	Male Pin	Black	10 µin	All	92	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin	0.117 in	0.385 in
Mill-Max Manufacturing Corp. 832-10-016-20-052000	0.217 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Right Angle Through Hole	Male Pin	Black	10 µin	All	16	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin	0.102 in
Mill-Max Manufacturing Corp. 832-10-036-30-052000	0.276 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Surface Mount	Male Pin	Black	10 µin	All	36	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin
Mill-Max Manufacturing Corp. 832-10-032-30-001000	0.11 in	Unshrouded	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.142 in	Circular	Surface Mount	Male Pin	Black	10 µin	All	32	0.079 in	2	Nylon 4/6 Polyamide (PA46)	Push-Pull	10 µin
Mill-Max Manufacturing Corp. 832-10-040-20-001000	0.157 in	Unshrouded	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.142 in	Circular	Right Angle Through Hole	Male Pin	Black	10 µin	All	40	0.079 in	2	Nylon 4/6 Polyamide (PA46)	Push-Pull	10 µin	0.135 in
Mill-Max Manufacturing Corp. 832-10-098-30-052000	0.276 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Surface Mount	Male Pin	Black	10 µin	All	98	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin
Mill-Max Manufacturing Corp. 832-10-084-30-052000	0.276 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Surface Mount	Male Pin	Black	10 µin	All	84	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin
Mill-Max Manufacturing Corp. 832-10-014-10-003000								Mating Target				Through Hole							2						10 Ąin	0.079 in	14	0.079 in	Gold	Brass Alloy
Mill-Max Manufacturing Corp. 832-10-064-20-052000	0.217 in	Shrouded - 4 Wall	Board	Brass Alloy	Gold	Gold	Solder	Header	0.079 in	0.138 in	Circular	Right Angle Through Hole	Male Pin	Black	10 µin	All	64	0.079 in	2	Polyphenylene Sulfide (PPS)	Push-Pull	10 µin	0.102 in
