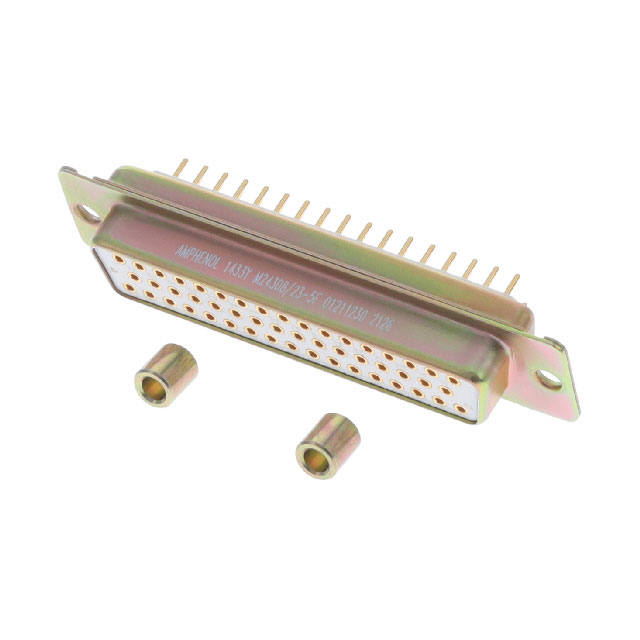

M24308/23-5F

Active

Amphenol Interconnect India

DSUB CONN,STRAIGHT, SOCKET, CADM

Search across all available documentation for this part.

Active

Amphenol Interconnect India

DSUB CONN,STRAIGHT, SOCKET, CADM

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/23-5F

Color	Natural
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

DSUB CONN,STRAIGHT, SOCKET, CADM

Part	Shell Size, Connector Layout	Connector Style	Color	Dielectric Material	Contact Material	Contact Type	Termination	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Flange Feature	Shell Material, Finish
Amphenol Interconnect India M24308/23-5F	5	D-Sub	Natural	Polyester, Glass Filled	Copper Alloy	Signal	Solder	Panel Mount, Through Hole	20 AWG	26 AWG	Receptacle, Female Sockets	50	UL94 V-0	7.5 A	Gold	-55 °C	125 °C	3	Housing/Shell (Unthreaded)	Steel, Yellow Cadmium Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
