9993 0601000

Active

Belden Inc.

MULTI-PAIR 24COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9993 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.87 mm
Jacket (Insulation) Diameter [diameter]	0.428 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	24 AWG

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Conductor Material	Wire Gauge	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage	Ratings	Length [x]	Length [x]	Jacket (Insulation) Material	Number of Conductors	Features	Shield Material	Length	Length
Belden Inc. 9993 060100	Multi-Pair	0.889 mm	0.035 in	Chrome	32 AWG	7	Polyethylene (PE)	Copper Tinned	24 AWG	Audio Control Instrumentation	-20 C	80 C	10.87 mm	0.428 in	Foil	100 %	UL Style 2919	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	24	Drain Wire	Aluminum
Belden Inc. 9993 0601000	Multi-Pair	0.889 mm	0.035 in	Chrome	32 AWG	7	Polyethylene (PE)	Copper Tinned	24 AWG	Audio Control Instrumentation	-20 C	80 C	10.87 mm	0.428 in	Foil	100 %	UL Style 2919			Poly-Vinyl Chloride (PVC)	24	Drain Wire	Aluminum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 12.26

General part information

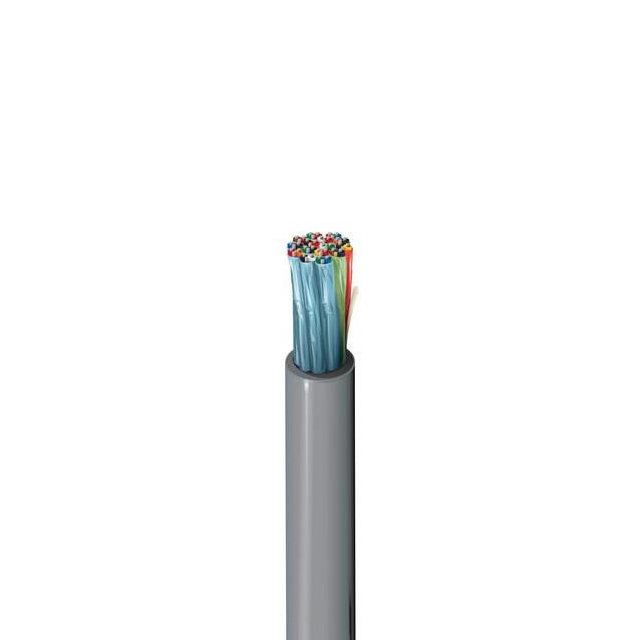

24 (12 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 1000.0' (304.8m)
