0257002.PXPV
ObsoleteLITTELFUSE

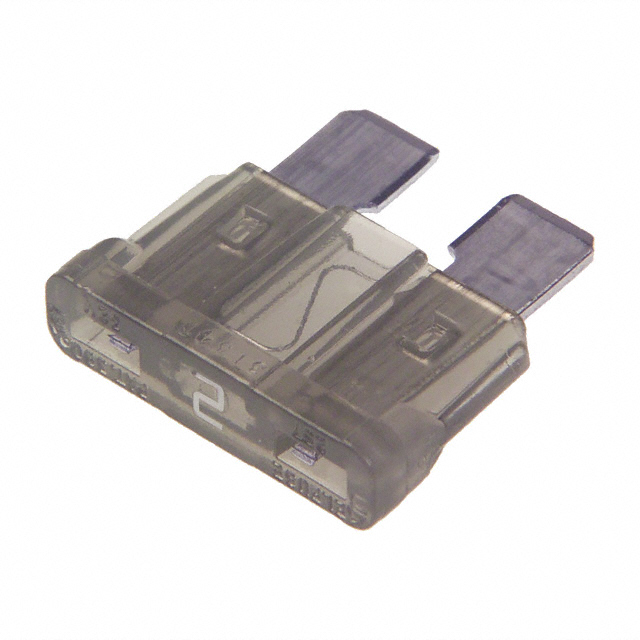

FUSE AUTO 2A 32VDC BLADE ATO/ATC
0257002.PXPV
ObsoleteLITTELFUSE
FUSE AUTO 2A 32VDC BLADE ATO/ATC
Description
General part information
0257002.PXPV
2 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
Technical Specifications
Parameters and characteristics for this part
| Specification | 0257002.PXPV |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Gray |
| Current Rating | 2 A |
| DC Cold Resistance | 0.0535 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 1.4 |
| Mounting Type | Requires Holder |
| Package / Case | ATO/ATC, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.48 in |
| Size / Dimension Length | 0.75 in |
| Size / Dimension Width | 0.2 in |
| Voltage Rating - DC | 32 V |
