M1CXA-1040K

Active

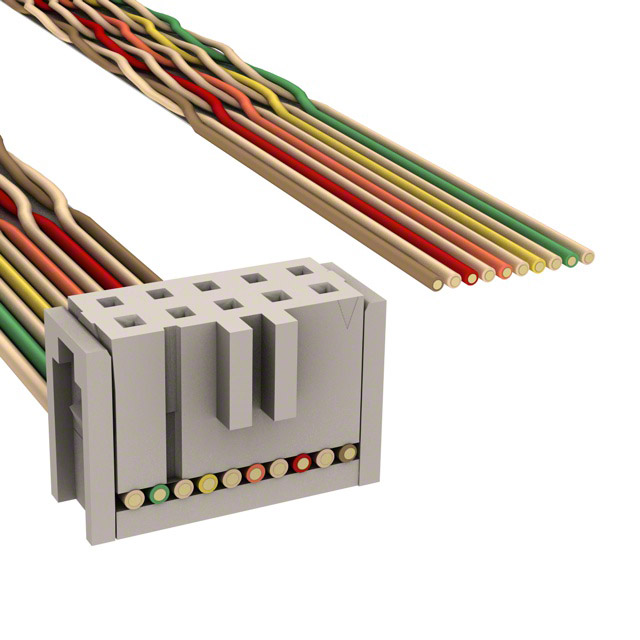

IDC CABLE - MKC10A/MC10F/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents891 Series Datasheet 1700 Series +1

M1CXA-1040K

Active

IDC CABLE - MKC10A/MC10F/X

Deep-Dive with AI

Documents891 Series Datasheet 1700 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.86
		10	$ 6.80
		25	$ 6.14
		50	$ 5.69
		100	$ 5.28
		250	$ 4.80
		500	$ 4.48
		1000	$ 4.19
		2500	$ 3.90

Description

General part information

M1CXA Series

10 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

891 Series Datasheet

Datasheet

1700 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1CXA-1040K	M1CXA Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	10	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1CXA Series

IDC CABLE - MKC26A/MC26M/X

Part	Number of Rows	Shielding	Color	Contact Finish	Pitch - Cable	Pitch - Cable	Connector Type	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Cable Termination
3M M1CXA-2636R	2	Unshielded	Multiple, Ribbon	Gold	0.05 "	1.27 mm	Socket to Cable	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	26	Polarizing Key	IDC
3M M1CXA-5040K	2	Unshielded	Multiple, Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Socket to Cable	3.34 ft	1.02 m	0.1 in	2.54 mm	0.76 Ám	30 Áin	50	Polarizing Key	IDC
3M M1CXA-3440K	2	Unshielded	Multiple, Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Socket to Cable	3.34 ft	1.02 m	0.1 in	2.54 mm	0.76 Ám	30 Áin	34	Polarizing Key	IDC
3M M1CXA-2436J	2	Unshielded		Gold	0.05 "	1.27 mm	Socket to Cable	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	24	Polarizing Key	IDC
3M M1CXA-2436R	2	Unshielded	Multiple, Ribbon	Gold	0.05 "	1.27 mm	Socket to Cable	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	24	Polarizing Key	IDC
3M M1CXA-4040K	2	Unshielded	Multiple, Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Socket to Cable	3.34 ft	1.02 m	0.1 in	2.54 mm	0.76 Ám	30 Áin	40	Polarizing Key	IDC
3M M1CXA-3036R	2	Unshielded	Multiple, Ribbon	Gold	0.05 "	1.27 mm	Socket to Cable	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	30	Polarizing Key	IDC
3M M1CXA-6040K	2	Unshielded	Multiple, Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Socket to Cable	3.34 ft	1.02 m	0.1 in	2.54 mm	0.76 Ám	30 Áin	60	Polarizing Key	IDC
3M M1CXA-1036R	2	Unshielded	Multiple, Ribbon	Gold	0.05 "	1.27 mm	Socket to Cable	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	10	Polarizing Key	IDC
3M M1CXA-2640K	2	Unshielded	Multiple, Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Socket to Cable	3.34 ft	1.02 m	0.1 in	2.54 mm	0.76 Ám	30 Áin	26	Polarizing Key	IDC
