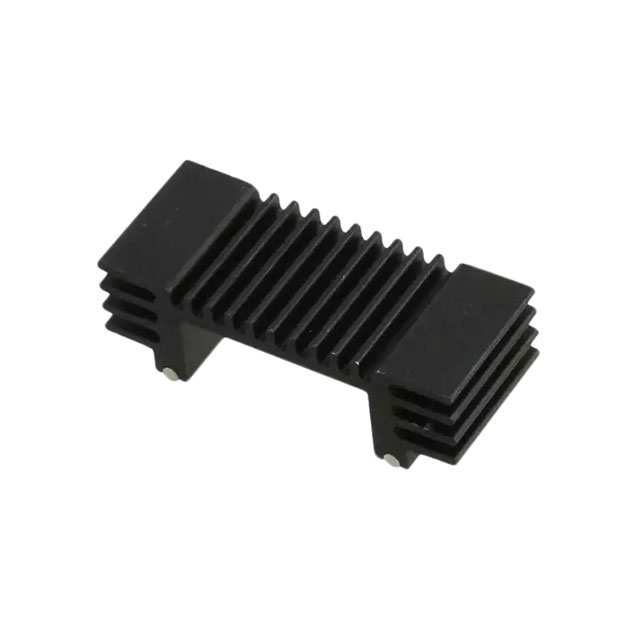

219-263B
ActiveWakefield-Vette
TO-263 HEAT SINK ANODZD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
219-263B
ActiveWakefield-Vette
TO-263 HEAT SINK ANODZD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 219-263B |
|---|---|
| Attachment Method | Solderable Feet |
| Fin Height [z] | 0.46 in |
| Fin Height [z] | 11.68 mm |
| Length | 0.5 in |
| Length | 12.7 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-263 (D˛Pak) |
| Power Dissipation @ Temperature Rise | 2 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 8 °C/W |
| Type | Top Mount |
| Width [x] | 35.25 mm |
| Width [x] | 1.386 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.15 | |
| 10 | $ 4.04 | |||
| 25 | $ 3.93 | |||
| 50 | $ 3.71 | |||
| 200 | $ 3.49 | |||
| 400 | $ 3.27 | |||
| 600 | $ 3.16 | |||
| 1000 | $ 2.84 | |||
Description
General part information
219-263B
Heat Sink TO-263 (D˛Pak) Aluminum 2.0W @ 30°C Top Mount
