1081-36-2

Active

Pomona Electronics

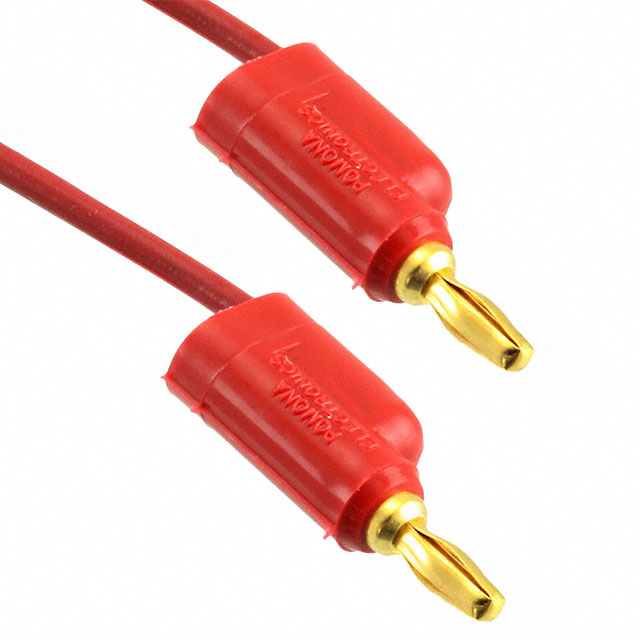

TEST LEAD BANANA TO BANANA 36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1081-36-2

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1081-36-2	1081 Series

1st Connector	Miniature Banana Plug, Single, Stackable	Miniature Banana Plug, Single, Stackable
2nd Connector	Miniature Banana Plug, Single, Stackable	Miniature Banana Plug, Single, Stackable
Cable Length	36 in	5 - 48 in
Cable Length	914.4 mm	203.2 - 1524 mm
Cable Length	-	4 in
Cable Length	-	101.6 mm
Configuration	Banana to Banana	Banana to Banana
Contents	Red	Red, 1 Lead, Black
Contents [custom]	1	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	3 kV	3 kV
Voltage - Rated	3000 V	3000 V
Wire Gauge	20 AWG	20 AWG

1081 Series

TEST LEAD BANANA TO BANANA 48"

Part	1st Connector	Wire Gauge	Voltage - Rated	Voltage - Rated	2nd Connector	Material - Insulation	Cable Length	Cable Length	Current Rating (Amps)	Type	Stacking Method	Contents [custom]	Contents	Configuration
Pomona Electronics 1081-48-2	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	48 in	1219.2 mm	5 A	Patch Cord	Front Stacking	1	Red	Banana to Banana
Pomona Electronics 1081-24-0	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	5 A	Patch Cord	Front Stacking		1 Lead, Black	Banana to Banana
Pomona Electronics 1081-8-0	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	8 "	203.2 mm	5 A	Patch Cord	Front Stacking		1 Lead, Black	Banana to Banana
Pomona Electronics 1081-8-2	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	8 "	203.2 mm	5 A	Patch Cord	Front Stacking	1	Red	Banana to Banana
Pomona Electronics 1081-60-0	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	5 ft	1524 mm	5 A	Patch Cord	Front Stacking		1 Lead, Black	Banana to Banana
Pomona Electronics 1081-60-2	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	5 ft	1524 mm	5 A	Patch Cord	Front Stacking	1	Red	Banana to Banana
Pomona Electronics 1081-48-0	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	48 in	1219.2 mm	5 A	Patch Cord	Front Stacking		1 Lead, Black	Banana to Banana
Pomona Electronics 1081-24-2	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	5 A	Patch Cord	Front Stacking	1	Red	Banana to Banana
Pomona Electronics 1081-36-0	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	36 in	914.4 mm	5 A	Patch Cord	Front Stacking		1 Lead, Black	Banana to Banana
Pomona Electronics 1081-18-2	Miniature Banana Plug, Single, Stackable	20 AWG	3 kV	3000 V	Miniature Banana Plug, Single, Stackable	Poly-Vinyl Chloride (PVC)	18 in	457.2 mm	5 A	Patch Cord	Front Stacking	1	Red	Banana to Banana

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.39
		25	$ 10.19

Description

General part information

1081 Series

36.0" (914.40mm) Miniature Banana Plug, Single, Stackable To Miniature Banana Plug, Single, Stackable Patch Cord 3000VAC, DC (3kV)
