Description
General part information

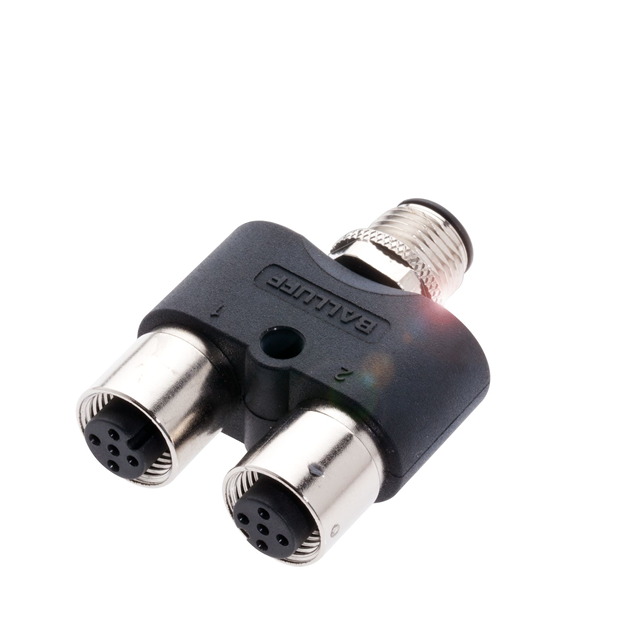

BCC0AEZ
Circular Connector Distributor Y-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCC0AEZ |
|---|---|
| Connector Style | Distributor Y-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets |
| Convert To (Adapter End) Count | 2 count |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Housing Color | Black |
| Housing Material | Nylon 6/6, Glass Filled, PA66, Polyamide |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) Secondary | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) | M12 |
| Shielding | Unshielded |
| Voltage Rating | 125 V |
| Voltage Rating (Type) | DC |
