Description
General part information
25YXS3300MEFC18X20

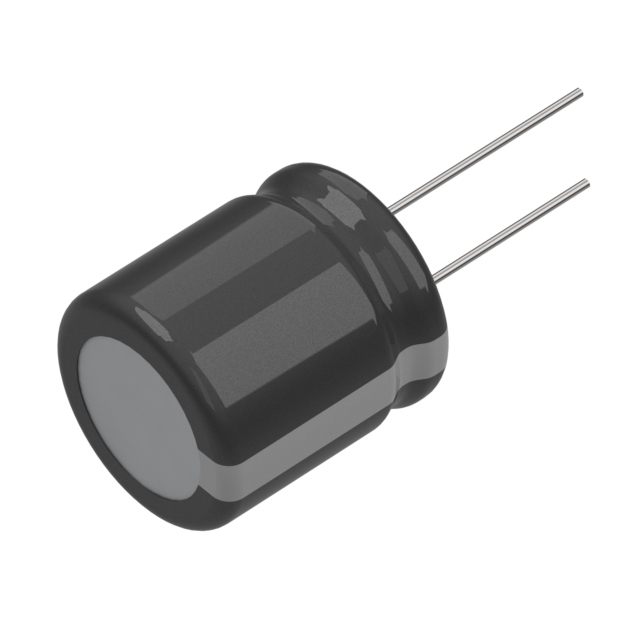

3300 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 25YXS3300MEFC18X20 |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 µF |
| Height - Seated (Max) | 0.866 in |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295 in |
| Lifetime | 6000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.86 A, 2.002 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
