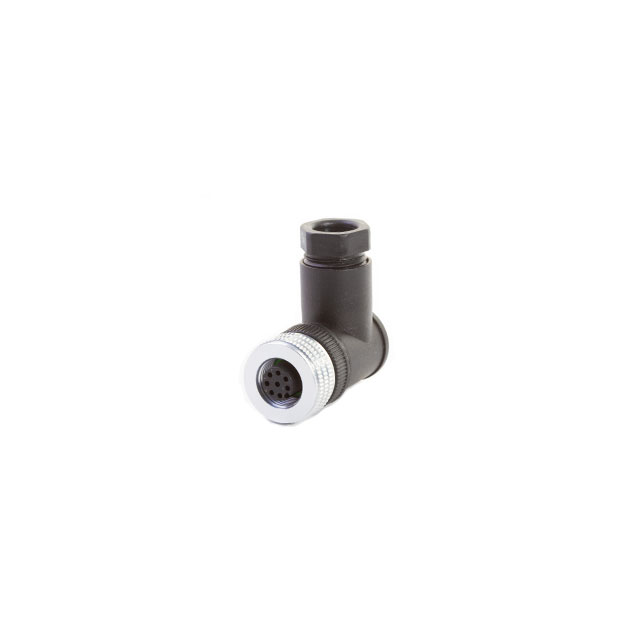

IPM12-A8FRA-SRFT-3
ActiveSure-Seal Legacy
CONN PLUG FMALE 8POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
IPM12-A8FRA-SRFT-3
ActiveSure-Seal Legacy
CONN PLUG FMALE 8POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPM12-A8FRA-SRFT-3 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 2 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic Polyurethane (TPU) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Anodized |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.32 | |
| 10 | $ 15.16 | |||
| 100 | $ 13.91 | |||
| 1000 | $ 12.30 | |||
| 10000 | $ 11.79 | |||
Description
General part information
IPM12-A8FRA-SRFT-3
8 Position Circular Connector Plug, Female Sockets Screw
Documents
Technical documentation and resources
No documents available
