FFLR6V0477KJE
ActiveKYOCERA AVX
CAP FILM 470UF, 1300VDC
FFLR6V0477KJE
ActiveKYOCERA AVX
CAP FILM 470UF, 1300VDC
Description
General part information
FFLR6V0477KJE

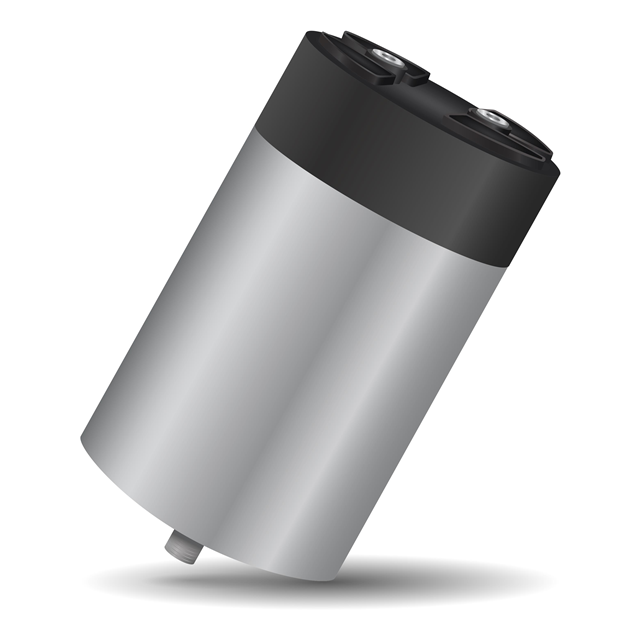

470 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFLR6V0477KJE |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 470 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.5 mOhm |
| Height - Seated (Max) | 6.417 in |
| Lead Spacing | 1.969 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 4.567 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 1300 V |
