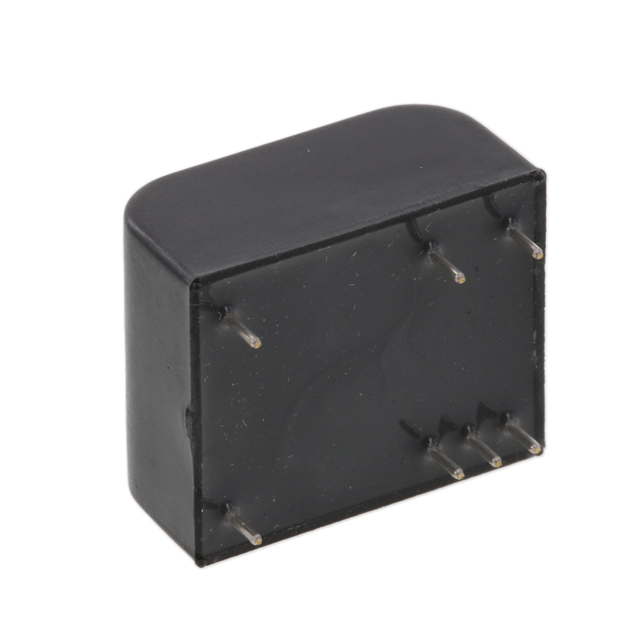

BPSX 0.5-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPSX 0.5-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 1/2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.01
		5	$ 5.92
		20	$ 5.88

Description

General part information

BPSX 0.5 Series

Enclosed AC DC Converters 1 Output 8V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPSX 0.5-08-00	BPSX 0.5 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	-	28 - 63 mA
Current - Output (Max)	-	36 - 63 mA
Current - Output (Max)	-	23 mA
Efficiency	70 %	70 %
Features	Universal Input	Universal Input
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	-	441 - 819 mW
Size / Dimension [x]	27.9 mm	27.9 mm
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [y]	0.92 "	0.92 "
Size / Dimension [y]	23.2 mm	23.2 mm
Size / Dimension [z]	0.55 in	0.55 in
Size / Dimension [z]	14 mm	14 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Output 1	8 V	8 - 14 V

BPSX 0.5 Series

AC/DC CONVERTER 8V 3.3V 632MW

Part	Mounting Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Power (Watts)	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Applications	Package / Case	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Cita Technologies, LLC. BPSX 0.5-08-33	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %	632 mW	2	Universal Input	85 VAC	265 VAC	8 V	Enclosed	85 °C	-40 °C	53 mA, 63 mA	ITE (Commercial)	7-DIP Module
Cita Technologies, LLC. BPSX 0.5-14-50	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %	572 mW	2	Universal Input	85 VAC	265 VAC	14 V	Enclosed	85 °C	-40 °C	28 mA, 36 mA	ITE (Commercial)	7-DIP Module
Cita Technologies, LLC. BPSX 0.5-08-50	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %	819 mW	2	Universal Input	85 VAC	265 VAC	8 V	Enclosed	85 °C	-40 °C		ITE (Commercial)	7-DIP Module	63 mA
Cita Technologies, LLC. BPSX 0.5-14-00	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %		1	Universal Input	85 VAC	265 VAC	14 V	Enclosed	85 °C	-40 °C		ITE (Commercial)	7-DIP Module
Cita Technologies, LLC. BPSX 0.5-08-00	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %		1	Universal Input	85 VAC	265 VAC	8 V	Enclosed	85 °C	-40 °C		ITE (Commercial)	7-DIP Module
Cita Technologies, LLC. BPSX 0.5-14-33	Through Hole	CB, cURus	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 %	441 mW	2	Universal Input	85 VAC	265 VAC	14 V	Enclosed	85 °C	-40 °C		ITE (Commercial)	7-DIP Module	36 mA	23 mA
