2902965

Active

Phoenix Contact

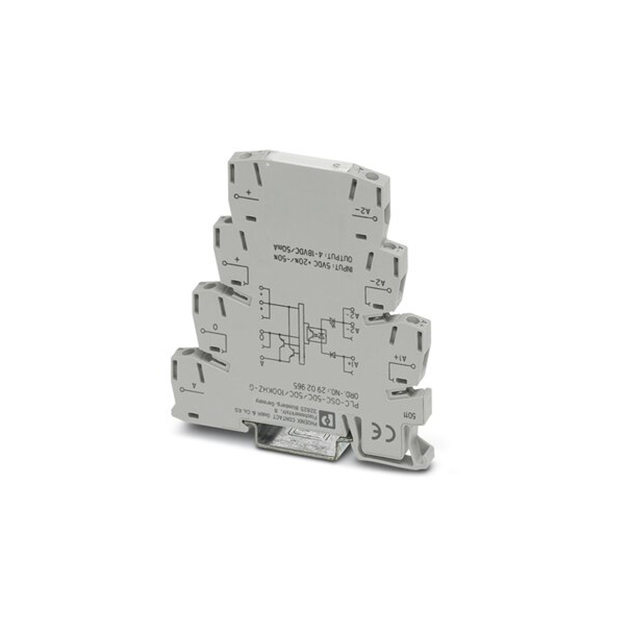

SSR RELAY SPST-NO 50MA 4-30V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 50MA 4-30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2902965	290296 Series

Approval Agency	EN	EN, IEC, EN, EX, EAC, UKCA, CE
Load Current	50 mA	50 mA
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-25 - -20 C
Output Type	DC	DC
Package / Case	Module	Module
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Voltage - Input	5 VDC	5 - 24 VDC
Voltage - Load [Max]	30 V	18 - 30 V
Voltage - Load [Min]	4 V	4 - 14 V

SSR RELAY SPST-NO 50MA 14-30V

Part	Voltage - Input	Approval Agency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Load Current	Output Type	Termination Style
Phoenix Contact 2902967	5 VDC	EN, IEC	Module	-20 C	60 °C	30 V	14 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902964	24 V	EN	Module	-20 C	60 °C	30 V	4 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902965	5 VDC	EN	Module	-20 C	60 °C	30 V	4 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902966	24 V	EN, IEC	Module	-20 C	60 °C	18 V	4 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902968	24 V	EN, IEC	Module	-20 C	60 °C	30 V	14 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902963	5 VDC	EAC, EX	Module	-20 C	60 °C	30 V	4 V	DIN Rail	50 mA	DC	Screw Terminal
Phoenix Contact 2902969	5 VDC	CE, UKCA		-25 °C	60 °C	30 V	4 V	DIN Rail	50 mA	DC	Spring Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.51

General part information

Solid State SPST-NO (1 Form A) Module
