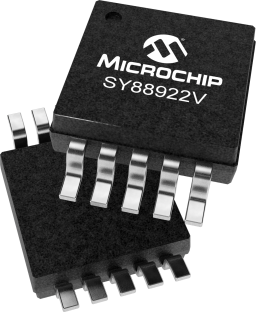

SY88922VKG-TR
ActiveIC LASER DRVR 2.5GB 5.5V 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
SY88922VKG-TR
ActiveIC LASER DRVR 2.5GB 5.5V 10MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY88922VKG-TR | SY88922 Series |
|---|---|---|
| Current - Modulation | 30 mA | 30 mA |
| Data Rate | 2.5 Gbps | 2.5 Gbps |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm | 3 mm |
| Package / Case [x] | 0.118 in | 0.118 in |
| Supplier Device Package | 10-MSOP | 10-MSOP |
| Type | Laser Diode Driver (Fiber Optic) | Laser Diode Driver (Fiber Optic) |
| Voltage - Supply [Max] | 3.6 V, 5.5 V | 3.6 - 5.5 V |
| Voltage - Supply [Min] | 4.5 V, 3 V | 3 - 4.5 V |
SY88922 Series
3.3V-5V 2.5 GBPS 25 MA LDD 10 MSOP 3X3X1.0MM TUBE ROHS COMPLIANT: YES
| Part | Data Rate | Operating Temperature [Max] | Operating Temperature [Min] | Current - Modulation | Supplier Device Package | Package / Case | Package / Case [x] | Package / Case [x] | Mounting Type | Number of Channels | Voltage - Supply [Max] | Voltage - Supply [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY88922VKG | 2.5 Gbps | 85 °C | -40 °C | 30 mA | 10-MSOP | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Surface Mount | 1 | 3.6 V, 5.5 V | 3 V, 4.5 V | Laser Diode Driver (Fiber Optic) |
Microchip Technology SY88922VKG-TR | 2.5 Gbps | 85 °C | -40 °C | 30 mA | 10-MSOP | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Surface Mount | 1 | 3.6 V, 5.5 V | 3 V, 4.5 V | Laser Diode Driver (Fiber Optic) |
Microchip Technology SY88922KC | 2.5 Gbps | 85 °C | -40 °C | 30 mA | 10-MSOP | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Surface Mount | 1 | 3.6 V, 5.5 V | 3 V, 4.5 V | Laser Diode Driver (Fiber Optic) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 10.33 | |
| Microchip Direct | T/R | 1 | $ 13.64 | |
| 25 | $ 11.35 | |||
| 100 | $ 10.33 | |||
| 1000 | $ 8.61 | |||
| 5000 | $ 7.95 | |||
| 10000 | $ 7.38 | |||
Description
General part information
SY88922 Series
The SY88922 is a high-speed current switch for driving a semiconductor laser diode in optical transmission applications. The output current, or modulation current IMOD, is DC current controlled by IRSET, current through the resistor RSET. The output OUT is HIGH when output enable is HIGH.
The device incorporates complementary open collector outputs with a capability of driving peak current of 25mA.
The resistor REXT must be placed between /OUT and VCC to dissipate the worst case power. RSER is recommended to compensate for laser diode matching issues.
Documents
Technical documentation and resources
