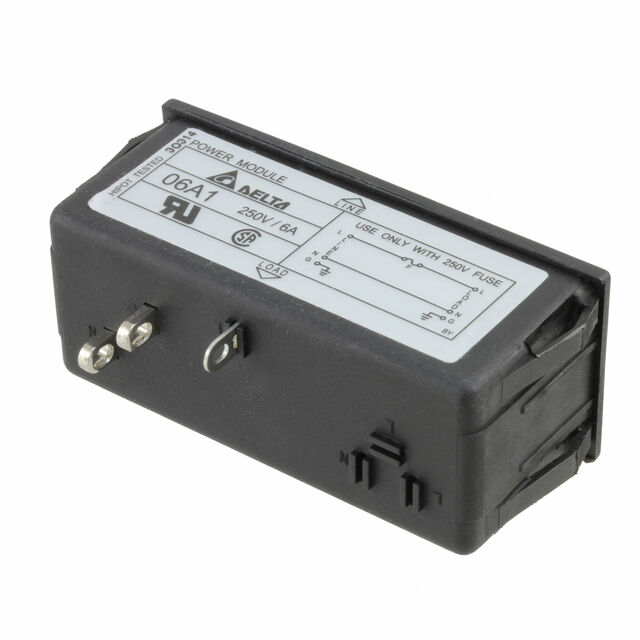

06A1

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	06A1	06A Series

Accomodates a Fuse	True	True
Approval Agency	SEMKO, UL, CSA, CE	SEMKO, UL, CSA, CE
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Features	-	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	66 mm	66 mm
Panel Cutout Dimensions [y]	27 mm	27 mm
Panel Thickness [Max]	1.78 mm	1.78 mm
Panel Thickness [Max]	0.07 in	0.07 in
Panel Thickness [Min]	0.04 in	0.04 in
Panel Thickness [Min]	1.02 mm	1.02 mm
Switch Features	-	Switch On-Off
Termination	Quick Connect	Quick Connect

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Mounting Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Connector Type	Features	Termination	Fuse Holder, Drawer	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Style	Material Flammability Rating	Switch Features
Delta Electronics 06A5	Unfiltered - Commercial	Panel Mount, Snap-In	0.04 in	1.02 mm	1.78 mm	0.07 in	Receptacle, Male Blades - Module	Voltage Selector	Quick Connect	Fuse Holder	27 mm	66 mm	CE, CSA, SEMKO, UL	IEC 320-C14	UL94 V-0
Delta Electronics 06A1	Unfiltered - Commercial	Panel Mount, Snap-In	0.04 in	1.02 mm	1.78 mm	0.07 in	Receptacle, Male Blades - Module		Quick Connect	Fuse Holder	27 mm	66 mm	CE, CSA, SEMKO, UL	IEC 320-C14	UL94 V-0
Delta Electronics 06A2D	Unfiltered - Commercial	Panel Mount, Snap-In	0.04 in	1.02 mm	1.78 mm	0.07 in	Receptacle, Male Blades - Module		Quick Connect	Fuse Holder	27 mm	66 mm	CE, CSA, SEMKO, UL	IEC 320-C14	UL94 V-0	Switch On-Off
