FMAD-0956-H310
ActiveSCHURTER Inc.
LINE FILTER 277/480VAC 250A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMAD-0956-H310
ActiveSCHURTER Inc.
LINE FILTER 277/480VAC 250A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FMAD-0956-H310 | FMAD Series |
|---|---|---|
| Applications | General Purpose | Photovoltaic Inverter, General Purpose |
| Approval Agency | cURus, VDE | cURus, VDE, ENEC, cURus, VDE, cURus, ENEC |
| Configuration | Single Stage | Single Stage |
| Current | 250 A | 3 - 250 A |
| Filter Type | Three Phase (Wye) | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 200 µH | 1.8 - 900 µH |
| Mounting Type | Chassis Mount | Chassis Mount, DIN Rail |
| Operating Temperature | - | 85 - 100 °C |
| Operating Temperature | - | -40 °C |
| Operating Temperature [custom] | 100 °C, -25 °C | -25 - 100 °C |
| Termination Style | Terminal Block | Terminal Block, Screw Clamp |
| Voltage - Rated AC | 277 V, 480 V | 277 - 480 V |
| Voltage - Rated AC | - | 520 V |
| Voltage - Rated AC | - | 300 V |
FMAD Series
LINE FILTER 300V/520VAC 20A CHAS
| Part | Approval Agency | Current | Mounting Type | Filter Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Voltage - Rated AC [Max] | Voltage - Rated AC [Min] | Applications | Operating Temperature [custom] | Inductance | Voltage - Rated AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. FMAD-34SZ-2042.SP | cURus, ENEC, VDE | 20 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-36SZ-1042.SP | cURus, ENEC, VDE | 10 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-0956-H310 | cURus, VDE | 250 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | Terminal Block | General Purpose | -25 °C, 100 °C | 200 µH | 277 V, 480 V | ||||
SCHURTER Inc. FMAD-36SZ-0642.HP | cURus, ENEC, VDE | 6 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-34SZ-1042.SP | cURus, ENEC, VDE | 10 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-395A-1612 | cURus, ENEC, VDE | 16 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | General Purpose | |||
SCHURTER Inc. FMAD-36SZ-2042.HP | cURus, ENEC, VDE | 20 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-345A-2512 | cURus, ENEC, VDE | 25 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | General Purpose | |||
SCHURTER Inc. FMAD-34SZ-1642.HP | cURus, ENEC, VDE | 16 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | 100 °C | -40 °C | Terminal Block | 520 V | 300 V | Photovoltaic Inverter | |||
SCHURTER Inc. FMAD-0924-0610 | cURus, VDE | 6 A | Chassis Mount | Three Phase (Wye) | 60 Hz | 50 Hz | Single Stage | Terminal Block | General Purpose | -25 °C, 100 °C | 9 mH | 277 V, 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2168.70 | |
Description
General part information
FMAD Series

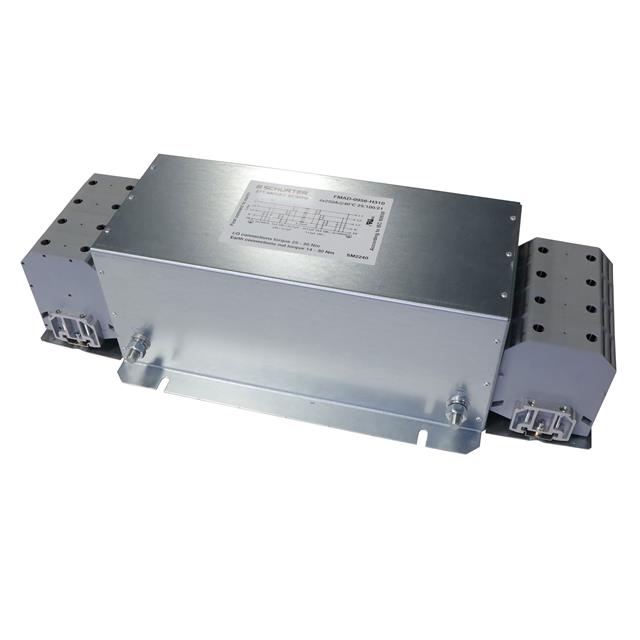

Three Phase (Wye) EMC/EMI Line Filter 250 A 277V, 480V 50/60Hz Single Stage Terminal Block
