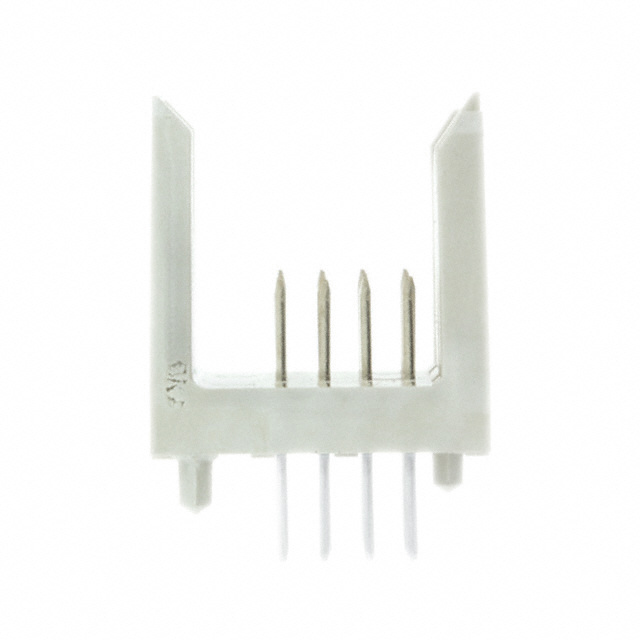

MP2-H024-41S1-S-LR
Active3M
CONN HEADER FUTUREBUS+ 24POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
MP2-H024-41S1-S-LR
Active3M
CONN HEADER FUTUREBUS+ 24POS PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MP2-H024-41S1-S-LR | MP2-H024 Series |
|---|---|---|
| Color | Beige | Beige |
| Connector Style | Futurebus+® | Futurebus+® |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 3 Áin | 3 - 30 Áin |
| Contact Finish Thickness | 0.076 Ám | 0.076 - 0.76 Ám |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Features | Mating Guide, Board Guide | Mating Guide, Board Guide |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 24 | 24 |
| Number of Positions Loaded | All | All |
| Operating Temperature [Max] | 125 °C | 105 - 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Solder | Press-Fit, Solder |
MP2-H024 Series
CONN HEADER FUTUREBUS+ 24POS PCB
| Part | Mounting Type | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Usage | Current Rating (Amps) | Connector Style | Termination | Connector Type | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Through Hole | 0.079 in | 2 mm | UL94 V-0 | 0.76 Ám | 30 Áin | Gold | Backplane | 1.5 A | Futurebus+® | Press-Fit | Header, Male Pins | 24 | Beige | -55 °C | 125 °C | All | Board Guide, Mating Guide | |
Through Hole | 0.079 in | 2 mm | UL94 V-0 | 0.076 Ám | 3 Áin | Gold | Backplane | 1.5 A | Futurebus+® | Solder | Header, Male Pins | 24 | Beige | -55 °C | 125 °C | All | Board Guide, Mating Guide | |
Through Hole | 0.079 in | 2 mm | UL94 V-0 | 0.076 Ám | 3 Áin | Gold | Backplane | 1.5 A | Futurebus+® | Press-Fit | Header, Male Pins | 24 | Beige | -55 °C | 125 °C | All | Board Guide, Mating Guide | |
Through Hole | 0.079 in | 2 mm | UL94 V-0 | 0.076 Ám | 3 Áin | Gold | 1.5 A | Press-Fit | Header, Male Pins | 24 | Beige | -55 °C | 105 ░C | All | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.03 | |
| 42 | $ 5.06 | |||
| 126 | $ 4.82 | |||
| 504 | $ 4.10 | |||
| 1008 | $ 3.50 | |||
Description
General part information
MP2-H024 Series
24 Connector Header, Male Pins Through Hole Beige Futurebus+®
