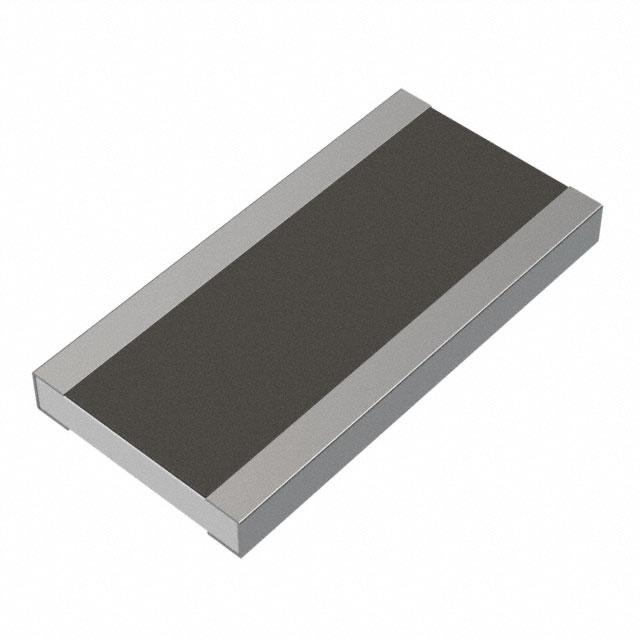

WK73S2HTTER620F
ActiveKOA Speer Electronics, Inc.
FIXED RESISTOR, METAL GLAZE/THICK FILM, 1W, 0.62OHM, 200V, 1% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 1020, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WK73S2HTTER620F
ActiveKOA Speer Electronics, Inc.
FIXED RESISTOR, METAL GLAZE/THICK FILM, 1W, 0.62OHM, 200V, 1% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 1020, CHIP, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WK73S2HTTER620F |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1020, Wide 2010 (5025 Metric) |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 620 mOhms |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 0.197 " |
| Size / Dimension [y] | 5 mm |
| Supplier Device Package | 1020 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.13 | |
Description
General part information
WK73S2HTTER620F
620 mOhms ±1% 1W Chip Resistor Wide 2010 (5025 Metric), 1020 Automotive AEC-Q200, Moisture Resistant Thick Film
