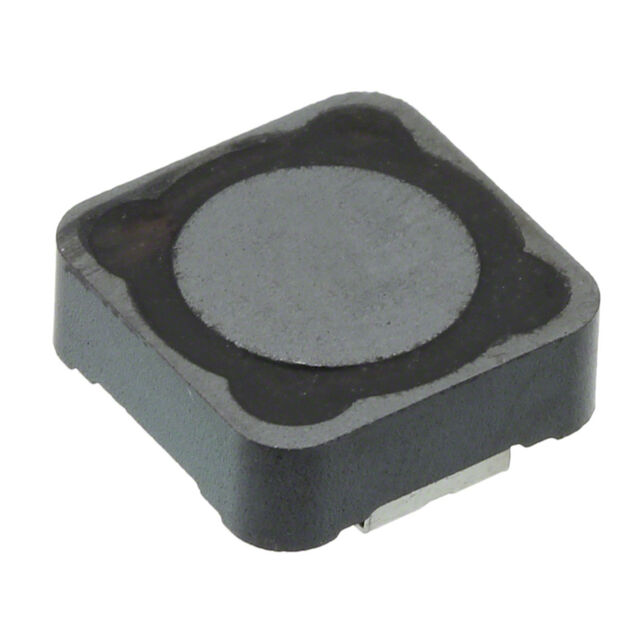

PA4303.105NLT
ActivePulse Electronics
FIXED IND 1MH 320MA 2.67 OHM SMD
PA4303.105NLT
ActivePulse Electronics
FIXED IND 1MH 320MA 2.67 OHM SMD
Description
General part information
PA4303.105NLT
1 mH Shielded Drum Core, Wirewound Inductor 320 mA 2.67Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4303.105NLT |
|---|---|
| Current Rating | 320 mA |
| DC Resistance (DCR) (Max) | 2.67 Ohm |
| Height - Seated (Max) | 0.197 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
