N3429-5203RB

Active

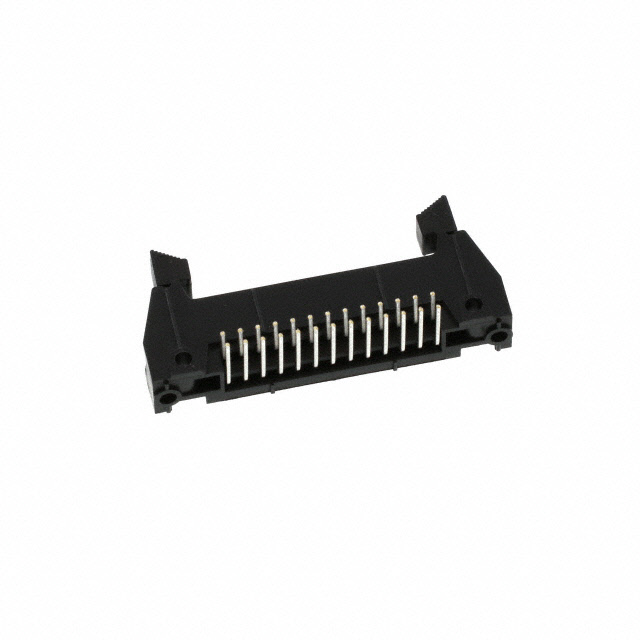

80000911760 N3429-5203RB =26/HDR/SL/RA/HT/.155/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3429-5203RB

Active

80000911760 N3429-5203RB =26/HDR/SL/RA/HT/.155/30AVG/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 3.51
Newark	Each	250	$ 4.55
		500	$ 4.23
		1000	$ 3.98

Description

General part information

N3429 Series

Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3429-5203RB	N3429 Series

	-	-
Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short, Push-Pull
Insulation Color	Black	Black
Insulation Height	0.34 in	0.31 - 0.685 in
Insulation Height	8.64 mm	7.87 - 17.4 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 in
Overall Contact Length	-	16.56 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N3429 Series

CONN EJECTOR HEADER HDR 26 POS 2.54MM SOLDER ST THRU-HOLE BOX

Part	Mounting Type	Shrouding	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Shape	Number of Positions	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating [x]	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type
3M N3429-6302	Through Hole	Shrouded - 4 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin-Lead	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Long
3M N3429-5203RB	Through Hole, Right Angle	Shrouded - 4 Wall	UL94 V-0	Black	8.64 mm	0.34 in	3.94 mm	0.155 "	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Short
3M N3429-2202RB	Through Hole	Shrouded - 3 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Short
3M N3429-2002RB	Through Hole	Shrouded - 3 Wall	UL94 V-0	Black	17.4 mm	0.685 "	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull
3M N3429-1303RB	Through Hole, Right Angle	Shrouded - 3 Wall	UL94 V-0	Black	7.87 mm	0.31 in	3.94 mm	0.155 "	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Long
3M N3429-CES80128
3M N3429-1002RB	Through Hole, Right Angle	Shrouded - 3 Wall	UL94 V-0	Black	7.87 mm	0.31 in	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull
3M N3429-6202	Through Hole	Shrouded - 4 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin-Lead	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Short
3M N3429-D202RB	Through Hole, Right Angle	Shrouded - 3 Wall	UL94 V-0	Black	16.76 mm	0.66 in	2.84 mm	0.112 in	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header, Stackable (2)	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square		2			6.1 mm	0.24 in		Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks, Short
3M N3429-5003RB	Through Hole, Right Angle	Shrouded - 4 Wall	UL94 V-0	Black	8.64 mm	0.34 in	3.94 mm	0.155 "	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board, Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull
