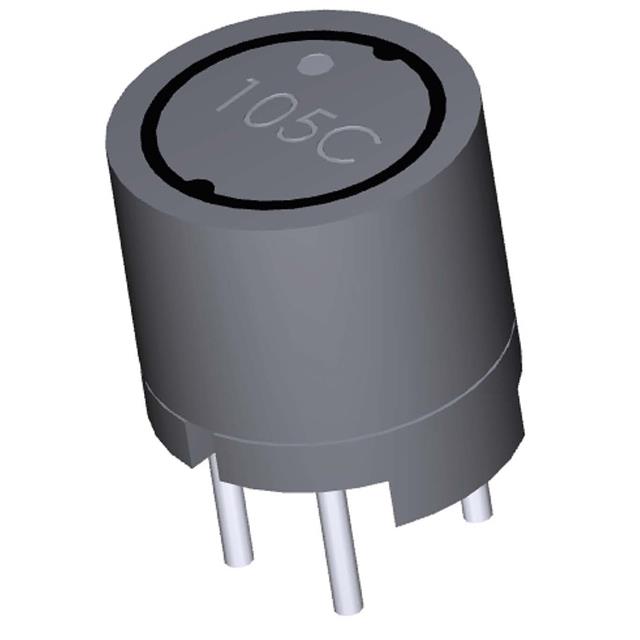

12RS104C
ActiveMurata Power Solutions Inc.
FIXED IND 100UH 1.4A 190 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12RS104C
ActiveMurata Power Solutions Inc.
FIXED IND 100UH 1.4A 190 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 12RS104C | 12RS Series |
|---|---|---|
| - | - | |
| Current Rating (Amps) | 1.4 A | 0.44 - 4.6 A |
| DC Resistance (DCR) | - | 42 - 290 mOhm |
| DC Resistance (DCR) [Max] | 190 mOhm | 1.2 - 980 mOhm |
| Height - Seated (Max) [Max] [z] | 0.335 in | 0.335 in |
| Height - Seated (Max) [Max] [z] | 8.5 mm | 8.5 mm |
| Inductance | 100 µH | 1 - 680 µH |
| Inductance Frequency - Test | 10 kHz | 10 kHz |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Vertical Cylinder, Radial | Vertical Cylinder, Radial |
| Package / Case | 4 Lead | 4 Lead |
| Shielding | Shielded | Shielded |
| Size / Dimension [diameter] | 10.5 mm, 0.413 in | 0.413 - 10.5 mm |
| Tolerance | 15 % | 15 - 20 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.63 | |||
12RS Series
FIXED IND 22UH 3.3A 42 MOHM TH
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | DC Resistance (DCR) | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type | Tolerance | Size / Dimension [diameter] | Package / Case | Package / Case | Shielding | Current Rating (Amps) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 12RS223C | 0.335 in | 8.5 mm | 10 kHz | 42 mOhm | 22 µH | 85 °C | -40 °C | Through Hole | Wirewound | 20 % | 0.413 in, 10.5 mm | Radial, Vertical Cylinder | 4 Lead | Shielded | 3.3 A | |
Murata Power Solutions Inc. 12RS154C | ||||||||||||||||
Murata Power Solutions Inc. 12RS105C | ||||||||||||||||
Murata Power Solutions Inc. 12RS153C | 0.335 in | 8.5 mm | 10 kHz | 15 µH | 85 °C | -40 °C | Through Hole | Wirewound | 20 % | 0.413 in, 10.5 mm | Radial, Vertical Cylinder | 4 Lead | Shielded | 4 A | 36 mOhm | |
Murata Power Solutions Inc. 12RS105C | 0.335 in | 8.5 mm | 10 kHz | 1 mH | 85 °C | -40 °C | Through Hole | Wirewound | 15 % | 0.413 in, 10.5 mm | Radial, Vertical Cylinder | 4 Lead | Shielded | 0.44 A | 1.5 Ohm | |
Murata Power Solutions Inc. 12RS684C | ||||||||||||||||
Murata Power Solutions Inc. 12RS683C | ||||||||||||||||
Murata Power Solutions Inc. 12RS153C | ||||||||||||||||
Murata Power Solutions Inc. 12RS473C | 0.335 in | 8.5 mm | 10 kHz | 100 mOhm | 47 µH | 85 °C | -40 °C | Through Hole | Wirewound | 15 % | 0.413 in, 10.5 mm | Radial, Vertical Cylinder | 4 Lead | Shielded | 2.2 A | |
Murata Power Solutions Inc. 12RS104C | 0.335 in | 8.5 mm | 10 kHz | 100 µH | 85 °C | -40 °C | Through Hole | Wirewound | 15 % | 0.413 in, 10.5 mm | Radial, Vertical Cylinder | 4 Lead | Shielded | 1.4 A | 190 mOhm |
Description
General part information
12RS Series
100 µH Shielded Wirewound Inductor 1.4 A 190mOhm Max Radial, Vertical Cylinder, 4 Leads
