VLF10040T-2R2N7R1
ObsoleteTDK Corporation
FIXED IND 2.2UH 7.1A 9.5MOHM SMD
VLF10040T-2R2N7R1
ObsoleteTDK Corporation
FIXED IND 2.2UH 7.1A 9.5MOHM SMD
Description
General part information
VLF10040T-2R2N7R1

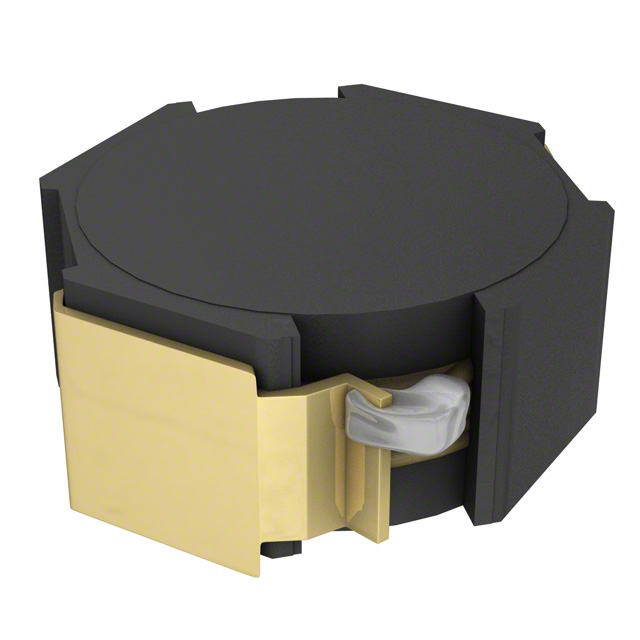

2.2 µH Shielded Drum Core, Wirewound Inductor 7.1 A 9.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF10040T-2R2N7R1 |
|---|---|
| Current - Saturation (Isat) | 8.2 A |
| Current Rating | 7.1 A |
| DC Resistance (DCR) (Max) | 9.5 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.382 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
