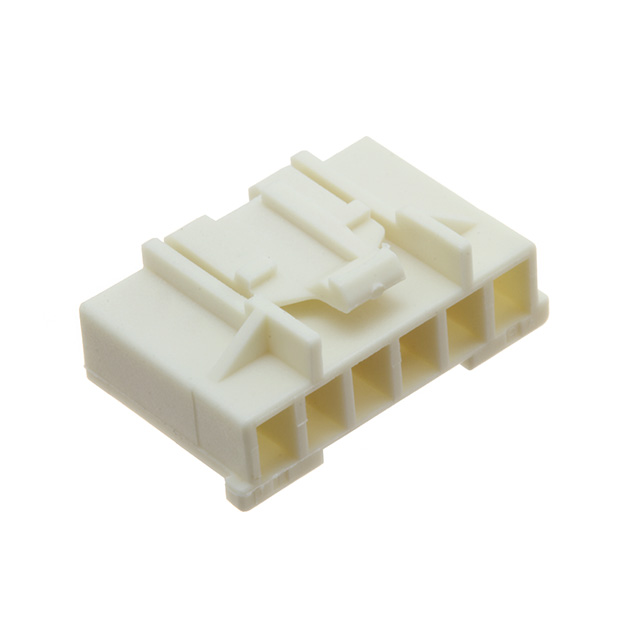

6-1971793-1

6-1971793-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS GI CONN 2.5 PLUG HSG 6P NATURAL

Find alt
6-1971793-1

6-1971793-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS GI CONN 2.5 PLUG HSG 6P NATURAL

Find alt

Description

General part information

GRACE INERTIA 2.5 Series

6 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 50 VAC, Wire & Cable, Power & Signal, GRACE INERTIA 2.5

Technical Specifications

Parameters and characteristics for this part

Specification6-1971793-1
ColorNatural
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions6
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.098 in
