787169-7

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1152	$ 6.88

General part information

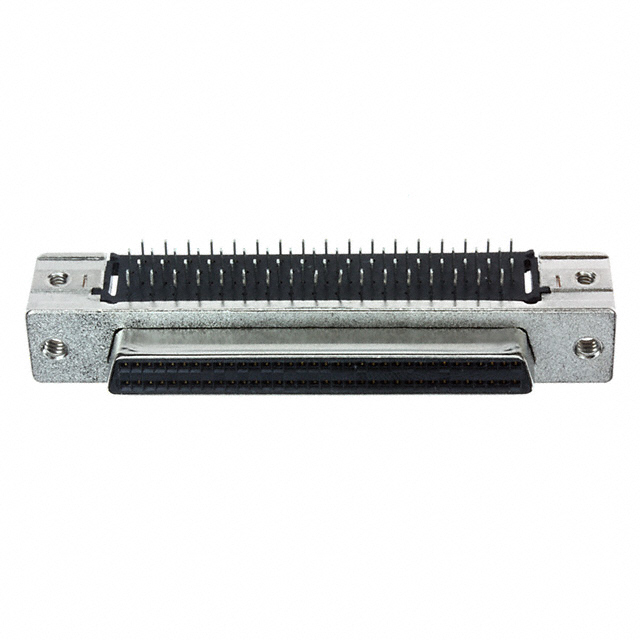

68 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	787169-7	787169 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded	Shielded
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	68	50 - 100
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 50POS R/A SLDR

Part	Mounting Type	Voltage Rating	Contact Finish	Termination	Flange Feature	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Dielectric Material	Connector Style	Material Flammability Rating	Features	Number of Rows	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Backset Spacing	Backset Spacing	Contact Material	Connector Type	Shell Material, Finish
TE Connectivity AMP Connectors 787169-5	Board Edge, Right Angle, Through Hole	30 VDC	Gold	Solder	Housing/Shell (4-40)	Black	50	105 ░C	-55 °C	Signal	Thermoplastic	D-Type	UL94 V-0	Shielded	2	0.05	0.1	3.71 mm	0.146 in	Phosphor Bronze	Receptacle, Female Sockets	Nickel Plated, Steel
TE Connectivity AMP Connectors 787169-9	Board Edge, Right Angle, Through Hole	30 VDC	Gold	Solder	Housing/Shell (4-40)	Black	100	105 ░C	-55 °C	Signal	Thermoplastic	D-Type	UL94 V-0	Shielded	2	0.05	0.1	3.71 mm	0.146 in	Phosphor Bronze	Receptacle, Female Sockets	Nickel Plated, Steel
TE Connectivity AMP Connectors 787169-7	Board Edge, Right Angle, Through Hole	30 VDC	Gold	Solder	Housing/Shell (4-40)	Black	68	105 ░C	-55 °C	Signal	Thermoplastic	D-Type	UL94 V-0	Shielded	2	0.05	0.1	3.71 mm	0.146 in	Phosphor Bronze	Receptacle, Female Sockets	Nickel Plated, Steel
