ATS-03C-03-C3-R0

Active

Advanced Thermal Solutions Inc.

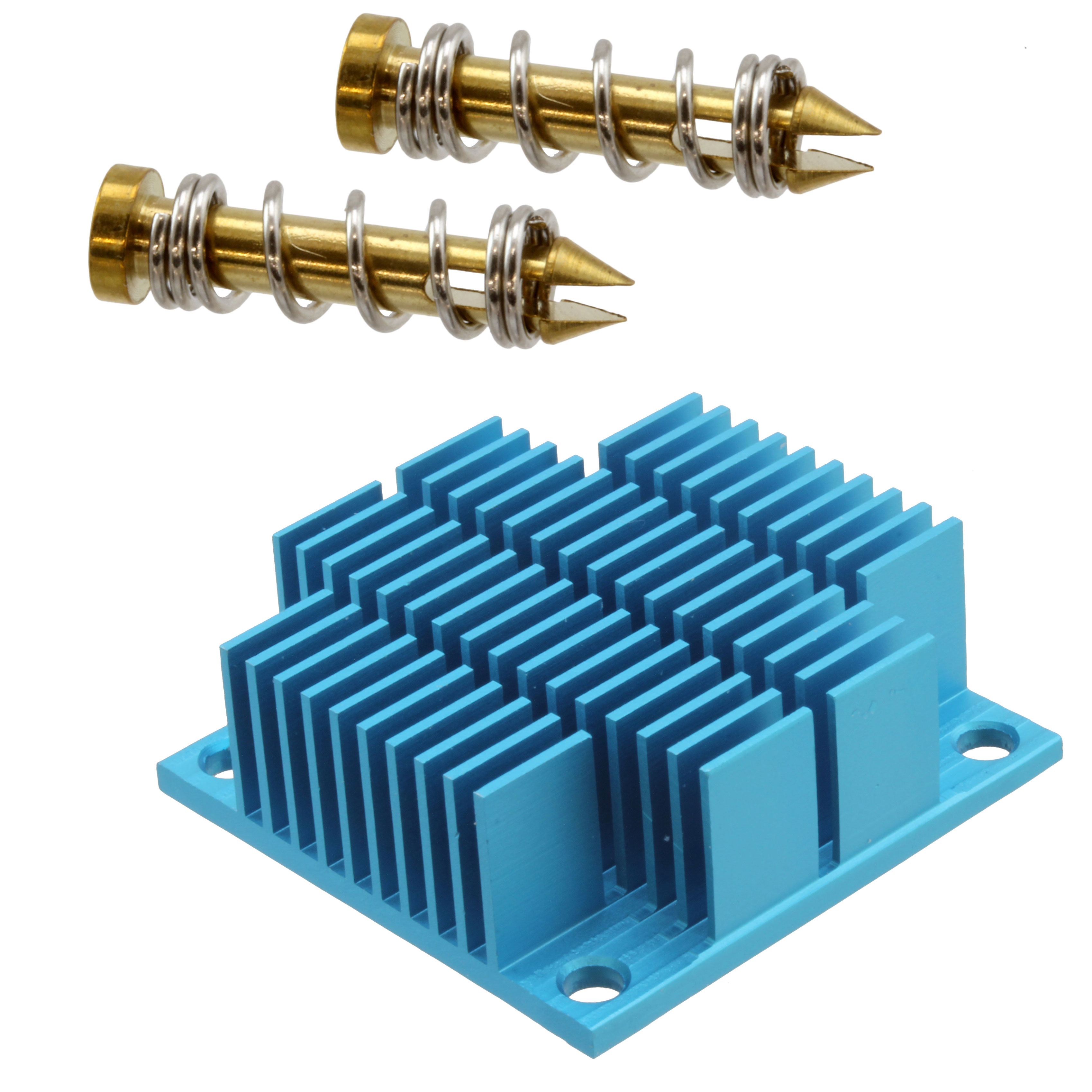

HEATSINK 40X40X15MM XCUT T412

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-03C-03-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 40X40X15MM XCUT T412

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-03C-03-C3-R0	ATS-03C Series

Attachment Method	Push Pin	Push Pin
Fin Height	0.59 "	0.23 - 1.378 in
Fin Height	15 mm	5.84 - 35 mm
Fin Height	-	0.394 - 1.181 in
Fin Height	-	10 - 30 mm
Length	-	1.181 - 2.362 "
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 "
Length	-	30 - 60 mm
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	100 LFM, 15.97 °C/W	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	-	25 - 57.6 mm
Width	-	1.45 - 2.756 in
Width	-	50 - 70 mm
Width	-	1.181 - 2.267 in
Width [x]	1.575 in	0.984 - 2.362 in
Width [x]	40 mm	40 - 60 mm

ATS-03C Series

HEATSINK 45X45X10MM R-TAB T766

...

Part	Shape	Material Finish	Attachment Method	Fin Height [z]	Fin Height [z]	Material	Package Cooled	Type	Length [x]	Length	Width	Width [x]	Thermal Resistance @ Forced Air Flow	Width [x]	Fin Height	Fin Height	Width [y]	Width [y]	Length	Length [x]	Width
Advanced Thermal Solutions Inc. ATS-03C-187-C2-R0	Fins, Square	Blue Anodized	Push Pin	0.394 in	10 mm	Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.772 "	45 mm	45 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-03C-71-C1-R0	Fins, Square	Blue Anodized	Push Pin	1.181 in	30 mm	Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.772 "	45 mm	45 mm	1.772 in	6.67 °C/W
Advanced Thermal Solutions Inc. ATS-03C-103-C3-R1	Fins, Square	Blue Anodized	Push Pin			Aluminum	ASIC, BGA, CPU, LGA	Top Mount				1.575 in	27.78 °C/W, 100 LFM	40 mm	0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-03C-27-C3-R0	Fins, Square	Blue Anodized	Push Pin	0.5 in	12.7 mm	Aluminum	ASIC, BGA, CPU, LGA	Top Mount		70 mm			12.28 °C/W				2.756 in	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-03C-174-C3-R0	Fins, Square	Blue Anodized	Push Pin			Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.181 in		30 mm		4.21 °C/W, 100 LFM		1.378 in	35 mm				30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-03C-80-C3-R0	Fins, Square	Blue Anodized	Push Pin			Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.181 in		30 mm		19.22 °C/W		0.59 "	15 mm				30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-03C-194-C2-R0	Fins, Square	Blue Anodized	Push Pin	0.394 in	10 mm	Aluminum	ASIC, BGA, CPU, LGA	Top Mount				1.575 in	13.07 °C/W	40 mm
Advanced Thermal Solutions Inc. ATS-03C-148-C3-R0	Fins, Square	Blue Anodized	Push Pin			Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.378 in		35 mm	1.378 in	8.73 °C/W		0.59 "	15 mm				35 mm
Advanced Thermal Solutions Inc. ATS-03C-63-C2-R0	Fins, Square	Blue Anodized	Push Pin	0.79 in	20 mm	Aluminum	ASIC, BGA, CPU, LGA	Top Mount				1.575 in	12.32 °C/W	40 mm
Advanced Thermal Solutions Inc. ATS-03C-08-C1-R0	Fins, Square	Blue Anodized	Push Pin			Aluminum	ASIC, BGA, CPU, LGA	Top Mount	1.772 "	45 mm	45 mm	1.772 in	14.59 °C/W		0.59 "	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.79

Description

General part information

ATS-03C Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
