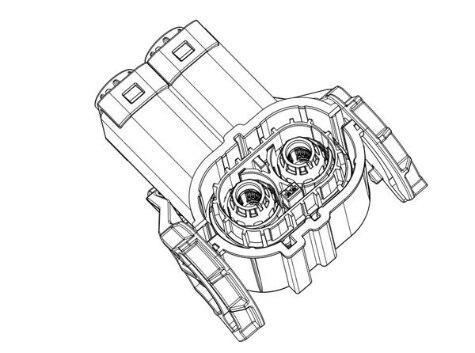

YHV800-2P-90-50M-B
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS HVP800-2PHI XE,90 50SQMM,KEY B KIT
YHV800-2P-90-50M-B
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS HVP800-2PHI XE,90 50SQMM,KEY B KIT
Description
General part information
YHV800-2P-90-50M-B
2 Position Housing, Receptacle, Cable-to-Cable / Wire-to-Wire, 23 mm [.905 in] Centerline, Sealable, Orange, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | YHV800-2P-90-50M-B |
|---|---|
| Cable Termination | Crimp |
| Color | Orange |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Sealed |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch | 0.906 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
