109BM12MC2-1

Active

Sanyo Denki America Inc.

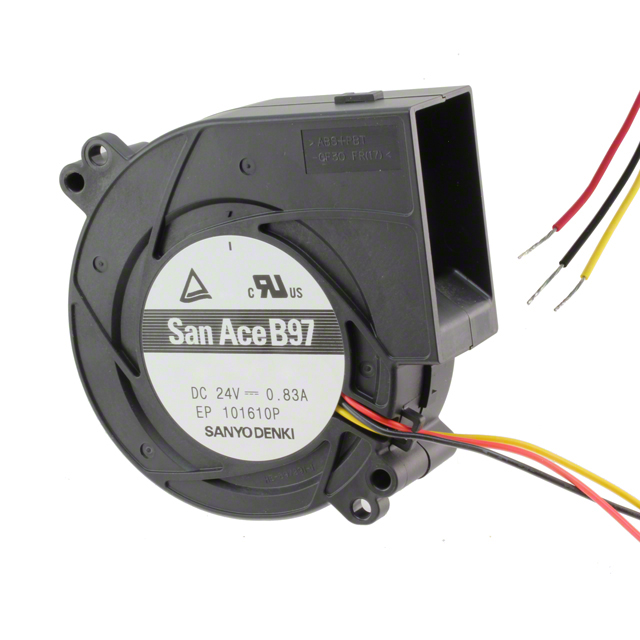

FAN BLOWER 97.2X33MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BM12MC2-1

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BM12MC2-1	109BM12 Series

Air Flow	0.574 m³/min	0.574 - 0.809 m³/min
Air Flow	20.5 CFM	20.5 - 28.9 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.26 A	0.26 - 600 A
Fan Type	Blower	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	48.5 - 51.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	3.12 W	3.12 - 7.2 W
RPM	2700 RPM	2700 - 3800 RPM
Size / Dimension	-	Rectangular/Rounded
Size / Dimension	-	94.5 mm
Size / Dimension [x]	97.2 mm	97.2 mm
Size / Dimension [y]	94.4 mm	94.4 mm
Static Pressure	119.1 Pa	119.1 - 281 Pa
Static Pressure	0.478 in H2O	0.478 - 1.129 in H2O
Termination	3 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	7 V	7 V
Weight	0.386 lb	0.386 lb
Weight	175.09 g	175.09 g
Width [y]	33 mm	33 mm

109BM12 Series

FAN BLOWER 97.2X33MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Voltage - Rated	Fan Type	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Material - Frame	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Width [y]	RPM	Static Pressure	Static Pressure	Weight	Weight	Approval Agency	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Bearing Type	Size / Dimension [y]	Noise	Features
Sanyo Denki America Inc. 109BM12MA2-1	0.26 A	Plastic	12 VDC	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	Plastic	3.12 W	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	33 mm	2700 RPM	119.1 Pa	0.478 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	20.5 CFM	0.574 m³/min	7 V	13.8 VDC	40000 Hrs	Ball
Sanyo Denki America Inc. 109BM12HA2-1	400 mA	Plastic	12 VDC	Blower	97.2 mm			Plastic	4.8 W	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	33 mm	3300 RPM	204 Pa	0.819 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	25.1 CFM	0.703 m³/min	7 V	13.8 VDC	40000 Hrs	Ball	94.4 mm	48.5 dB(A)
Sanyo Denki America Inc. 109BM12P2M01	0.26 A	Plastic	12 VDC	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	Plastic	3.12 W	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads	33 mm	2700 RPM	119.1 Pa	0.478 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	20.5 CFM	0.574 m³/min	7 V	13.8 VDC	40000 Hrs	Ball			Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Sanyo Denki America Inc. 109BM12MC2-1	0.26 A	Plastic	12 VDC	Blower	97.2 mm			Plastic	3.12 W	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	33 mm	2700 RPM	119.1 Pa	0.478 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	20.5 CFM	0.574 m³/min	7 V	13.8 VDC	40000 Hrs	Ball	94.4 mm		Locked Rotor Protection, Speed Sensor (Tach)
Sanyo Denki America Inc. 109BM12GD2-1	600 mA	Plastic	12 VDC	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	Plastic	7.2 W	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	33 mm	3800 RPM	281 Pa	1.129 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	28.9 CFM	0.809 mł/min	7 V	13.8 VDC	40000 Hrs	Ball		51.5 dB	Locked Rotor Sensor
Sanyo Denki America Inc. 109BM12MD2-1	0.26 A	Plastic	12 VDC	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	Plastic	3.12 W	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	33 mm	2700 RPM	119.1 Pa	0.478 in H2O	0.386 lb	175.09 g	CSA, TUV, UL	20.5 CFM	0.574 m³/min	7 V	13.8 VDC	40000 Hrs	Ball			Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.93
		10	$ 23.68
		32	$ 22.78
		64	$ 21.28
		128	$ 19.63
		256	$ 19.34
		512	$ 19.19

Description

General part information

109BM12 Series

Fan Blower 12VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 20.5 CFM (0.574mł/min) 3 Wire Leads
