808-AG11D-LF

Obsolete

TE Connectivity AMP Connectors

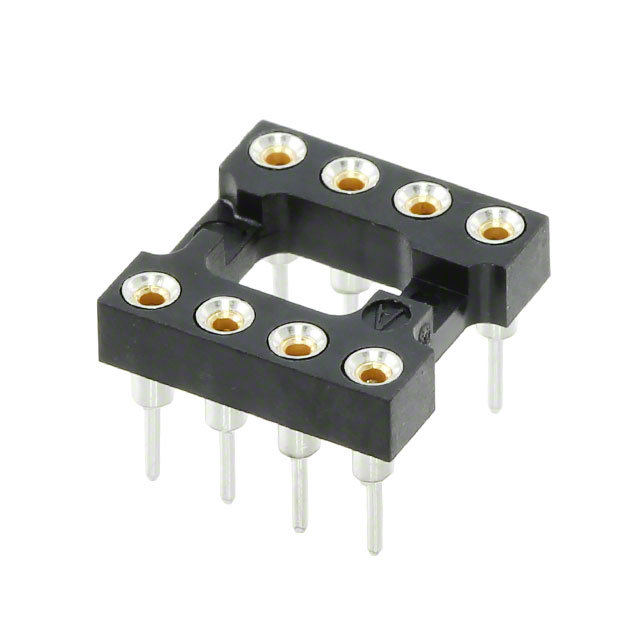

CONN IC DIP SOCKET 8POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 8POS GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.47

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	808-AG11D-LF	808 Series

Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Gold	Tin-Lead, Gold
Contact Finish Thickness - Post	25 µin	5 - 80 µin
Contact Finish Thickness - Post	0.63 µm	0.127 - 2.03 µm
Contact Material - Mating	Beryllium Copper	Copper Alloy, Beryllium Copper
Contact Material - Post	Copper	Copper
Contact Material - Post	-	Copper Alloy
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	-	3 A
Features	Open Frame	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	8	8
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.3 "	0.3 "
Type	7.62 mm	7.62 mm
Type	DIP	DIP

CONN IC DIP SOCKET 8POS TIN-LEAD

Part	Type	Type	Type	Housing Material	Contact Finish - Mating	Contact Resistance	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Mounting Type	Features	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions or Pins (Grid)	Termination	Material Flammability Rating	Termination Post Length	Termination Post Length	Contact Material - Mating	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post
TE Connectivity AMP Connectors 808-AG12D	0.3 "	7.62 mm	DIP	Polyester	Tin-Lead	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Open Frame	Tin-Lead	3 A	105 ░C	-55 °C	8	Solder	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Copper Alloy
TE Connectivity AMP Connectors 808-AG10D	0.3 "	7.62 mm	DIP	Polyester	Gold	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Open Frame	Gold	3 A	105 ░C	-55 °C	8	Solder	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Copper Alloy	5 µin	0.127 µm
TE Connectivity AMP Connectors 808-AG11D	0.3 "	7.62 mm	DIP	Polyester	Gold	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Open Frame	Tin-Lead		105 ░C	-55 °C	8	Solder	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Copper Alloy	80 µin	2.03 µm
TE Connectivity AMP Connectors 808-AG11D-LF	0.3 "	7.62 mm	DIP	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	10 mOhm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Open Frame	Gold		105 ░C	-55 °C	8	Solder	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper		25 µin	0.63 µm	Copper
