JANTX1N1190R
ActiveMicrochip Technology

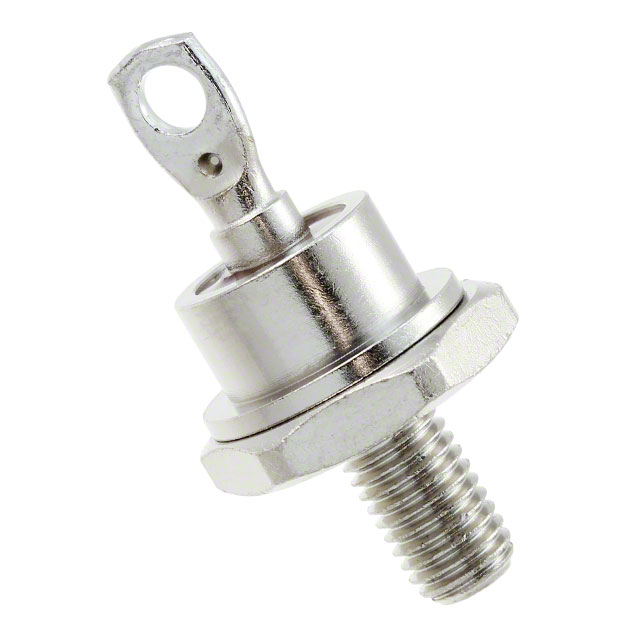

RECTIFIER DIODE SWITCHING 2-PIN 600V, 35A DO-5 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
Documents1N1183-90-1N3765-68
JANTX1N1190R
ActiveMicrochip Technology
RECTIFIER DIODE SWITCHING 2-PIN 600V, 35A DO-5 TRAY
Deep-Dive with AI
Documents1N1183-90-1N3765-68
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N1190R | 1N1190 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 35 A | 35 - 40 A |
| Current - Reverse Leakage @ Vr | 10 µA | 10 µA |
| Grade | Military | Military |
| Mounting Type | Stud Mount | Chassis, Stud Mount |
| Operating Temperature - Junction [Max] | 175 ░C | 175 - 200 ░C |
| Operating Temperature - Junction [Min] | -65 C | -65 C |
| Package / Case | DO-203AB, DO-5, Stud | DO-203AB, DO-5, Stud |
| Qualification | MIL-PRF-19500/297 | MIL-PRF-19500/297 |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Speed | - | Standard Recovery >500ns |
| Supplier Device Package | DO-5 | DO-5, DO-203AB |
| Supplier Device Package | - | DO-5 |
| Technology | Standard, Reverse Polarity | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V | 1.19 - 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 60.89 | |
| Microchip Direct | N/A | 1 | $ 65.58 | |
1N1190 Series
Rectifier Diode Switching 2-Pin 600V, 35A DO-5 Tray
| Part | Voltage - Forward (Vf) (Max) @ If | Technology | Grade | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) | Package / Case | Mounting Type | Supplier Device Package | Current - Reverse Leakage @ Vr | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Qualification | Speed | Speed | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JAN1N1190R | 1.4 V | Reverse Polarity, Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Chassis, Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | Standard Recovery >500ns | 200 mA | |
Microchip Technology 1N1190R | |||||||||||||||
Microchip Technology JANTX1N1190R | 1.4 V | Reverse Polarity, Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | 200 mA, 500 ns | ||
Microchip Technology 1N1190A | 1.19 V | Standard | 600 V | 40 A | DO-203AB, DO-5, Stud | Stud Mount | DO-203AB | 10 µA | 200 C | -65 C | Standard Recovery >500ns | 200 mA | DO-5 | ||
Microchip Technology 1N1190 | |||||||||||||||
Microchip Technology 1N1190AR | |||||||||||||||
Microchip Technology JANTXV1N1190R | |||||||||||||||
Microchip Technology 1N1190 | 1.4 V | Standard | 600 V | 35 A | DO-203AB, DO-5, Stud | Stud Mount | DO-203AB | 10 µA | 175 ░C | -65 C | Standard Recovery >500ns | 200 mA | DO-5 | ||
Microchip Technology JANTX1N1190 | 1.4 V | Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | 200 mA, 500 ns | ||
Microchip Technology JAN1N1190 | 1.4 V | Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Chassis, Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | Standard Recovery >500ns | 200 mA | |
Microchip Technology 1N1190AR | 1.19 V | Reverse Polarity, Standard | 600 V | 40 A | DO-203AB, DO-5, Stud | Stud Mount | DO-203AB | 10 µA | 200 C | -65 C | Standard Recovery >500ns | 200 mA | DO-5 | ||
Microchip Technology JANTXV1N1190 | 1.4 V | Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Chassis, Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | Standard Recovery >500ns | 200 mA | |
Microchip Technology 1N1190A | |||||||||||||||
Microchip Technology 1N1190R | 1.4 V | Reverse Polarity, Standard | 600 V | 35 A | DO-203AB, DO-5, Stud | Stud Mount | DO-203AB | 10 µA | 175 ░C | -65 C | Standard Recovery >500ns | 200 mA | DO-5 | ||
Microchip Technology JANTX1N1190 | |||||||||||||||
Microchip Technology JANTXV1N1190R | 1.4 V | Reverse Polarity, Standard | Military | 600 V | 35 A | DO-203AB, DO-5, Stud | Chassis, Stud Mount | DO-5 | 10 µA | 175 ░C | -65 C | MIL-PRF-19500/297 | Standard Recovery >500ns | 200 mA |
