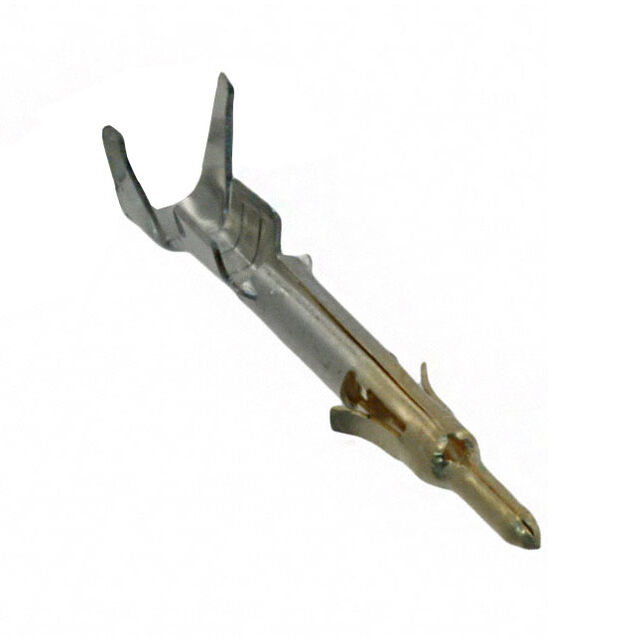

770987-3
ActiveTE Connectivity AMP Connectors
CONN PIN 18-22AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770987-3
ActiveTE Connectivity AMP Connectors
CONN PIN 18-22AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770987-3 | 770987 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
770987 Series
CONN PIN 18-22AWG GOLD CRIMP
| Part | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770987-3 | Gold | 22 AWG | 17.5 AWG | Brass | 0.76 Ám | 30 Áin | Crimp | Pin | Stamped |
TE Connectivity AMP Connectors 770987-1 | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | Pin | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.58 | |||
| 1000 | $ 0.45 | |||
| 5000 | $ 0.39 | |||
| 10000 | $ 0.37 | |||
Description
General part information
770987 Series
Pin Contact Gold Crimp 18-22 AWG Stamped
