ERM5-060-04.0-L-DV-K-TR

Active

Samtec Inc.

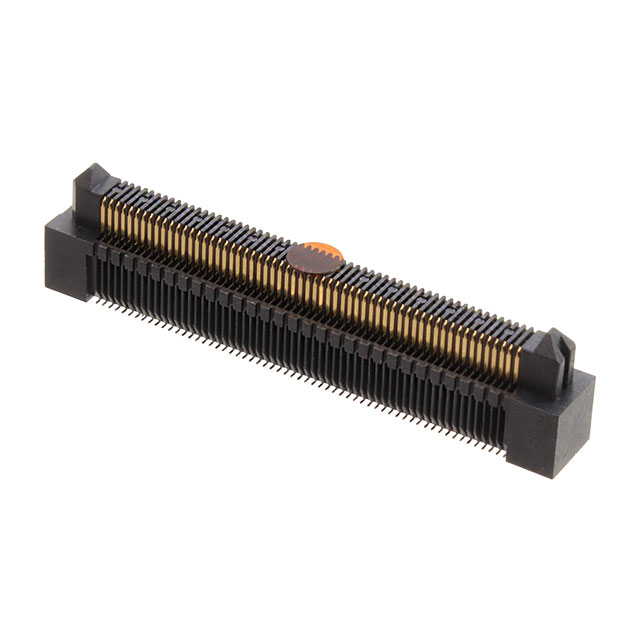

CONN HDR 120POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 120POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-060-04.0-L-DV-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.27 in
Height Above Board	6.85 mm
Mated Stacking Heights	9 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Connector Type	Mated Stacking Heights	Features	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Rows	Contact Finish
Samtec Inc. ERM5-060-04.0-L-DV-TR	Surface Mount	Header Outer Shroud Contacts	9 mm 11 mm	Board Guide	120	0.5 mm	0.02 in	10 Áin	0.25 Ám	0.27 in	6.85 mm	2	Gold
Samtec Inc. ERM5-060-05.0-S-DV-K-TR	Surface Mount	Header Outer Shroud Contacts	10 mm 12 mm	Board Guide Pick and Place	120	0.5 mm	0.02 in	30 Áin	0.76 Ám	0.309 in	7.85 mm	2	Gold
Samtec Inc. ERM5-060-04.0-L-DV-K-TR	Surface Mount	Header Outer Shroud Contacts	9 mm 11 mm	Board Guide Pick and Place	120	0.5 mm	0.02 in	10 Áin	0.25 Ám	0.27 in	6.85 mm	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
