Description
General part information

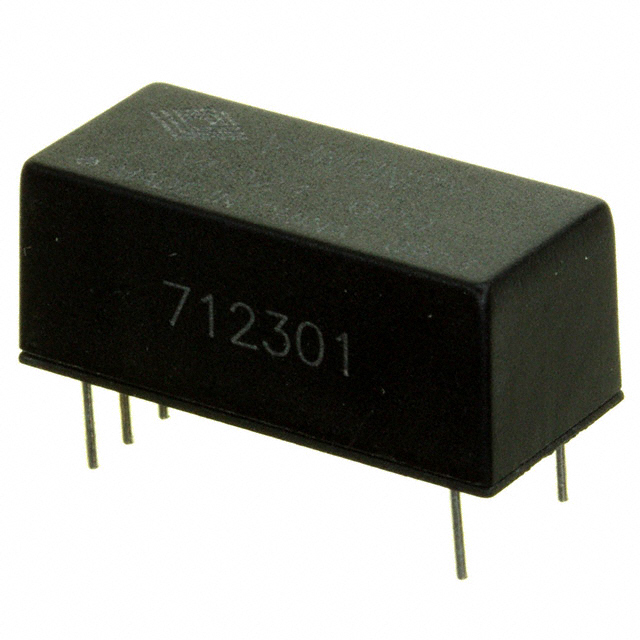

VLD24-600
600mA 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | VLD24-600 |
|---|---|
| Current - Output (Max) | 600 mA |
| Dimming | PWM, Analog |
| Efficiency | 96 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 18 W |
| Size / Dimension Height | 0.37 in |
| Size / Dimension Length | 0.9 in |
| Size / Dimension Width | 0.4 in |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 6.5 V |
| Voltage - Output (Max) | 30 V |
| Voltage - Output (Min) | 2 V |
| Weight | 0.008 lb |
