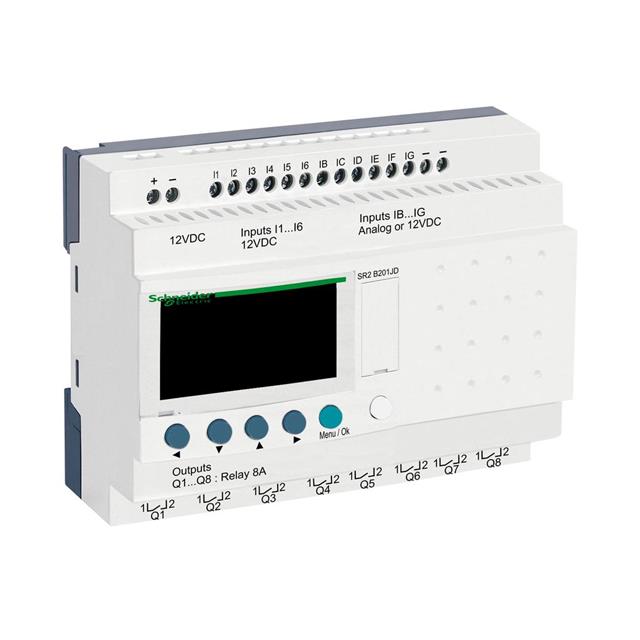

SR2B201JD
ActiveSMART RELAY, ZELIO LOGIC SERIES, 12 DISCRETE INPUTS, 2 ANALOG INPUTS, 8 RELAY OUTPUTS, 12 VDC
SR2B201JD
ActiveSMART RELAY, ZELIO LOGIC SERIES, 12 DISCRETE INPUTS, 2 ANALOG INPUTS, 8 RELAY OUTPUTS, 12 VDC
Description
General part information
SR2B201JD
Zelio Logic is suitable for all your applications. It is ideal with control systems for small machines, decentralized control systems on equipment annexed to large and medium-sized machines. It also enables the control and monitoring of your installations in any situation, either on site or remotely.
Technical Specifications
Parameters and characteristics for this part
| Specification | SR2B201JD |
|---|---|
| Approval Agency | GL, CSA, UL |
| Ingress Protection | IP20, IP40 |
| Input Types | Analog |
| Mounting Type | Panel Mount |
| Number of Inputs | 6 |
| Number of Outputs | 8 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Voltage - Supply (Maximum) | 14.4 V |
| Voltage - Supply (Minimum) | 10.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
