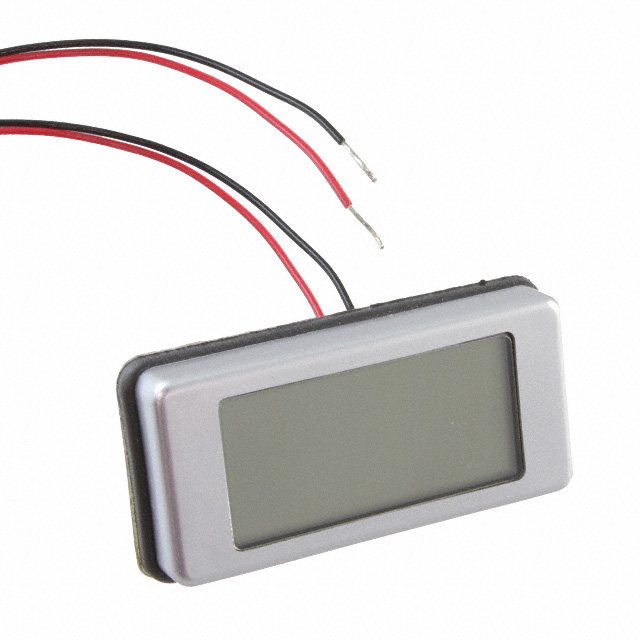

EMV 1200-40

Active

Lascar Electronics

2-WIRE LCD VOLTMETER

Search across all available documentation for this part.

Active

Lascar Electronics

2-WIRE LCD VOLTMETER

Technical Specifications

Parameters and characteristics for this part

Specification	EMV 1200-40

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Black Characters
Measuring Range [Max]	40 VDC
Measuring Range [Min]	4 VDC
Measuring Type	Voltage
Number of Characters Per Row	3
Panel Cutout Dimensions [diameter]	5.5 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4 V

2-WIRE LCD VOLTMETER

Part	Panel Cutout Dimensions [diameter]	Measuring Range [Max]	Measuring Range [Min]	Display Type	Termination Style	Measuring Type	Type	Number of Characters Per Row	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height [z]	Display Characters - Height [z]
Lascar Electronics EMV 1200-40	5.5 mm	40 VDC	4 VDC	LCD - Black Characters	PC Pin	Voltage	Voltmeter	3	28 V	4 V	0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltmeter LCD - Black Characters Display Panel Mount
