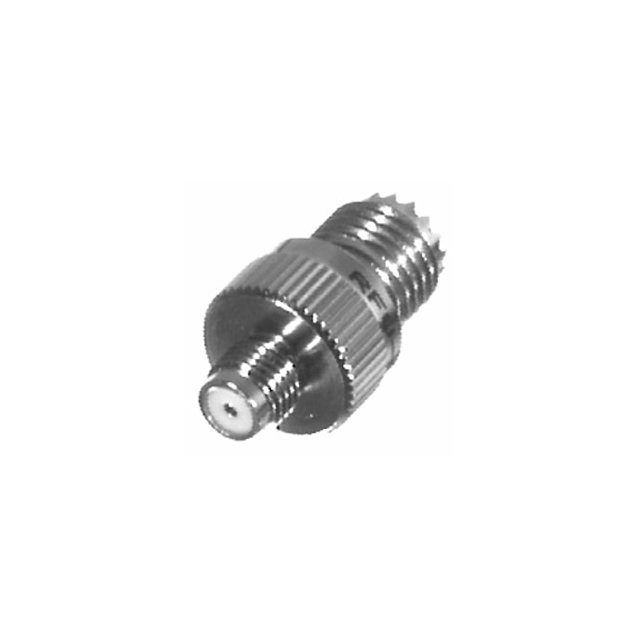

RFU-642
ActiveRF Industries
MUHF FEMALE-SMA FEMALE; MOTOROLA
Deep-Dive with AI
Search across all available documentation for this part.
RFU-642
ActiveRF Industries
MUHF FEMALE-SMA FEMALE; MOTOROLA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFU-642 |
|---|---|
| Adapter Series | SMA to UHF Mini |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | UHF Mini Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 2.5 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.23 | |
| 50 | $ 8.83 | |||
| 100 | $ 8.46 | |||
Description
General part information
RFU-642
Adapter Coaxial Connector SMA Jack, Female Socket To UHF Mini Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
