SH100M025ST
ObsoleteCornell Dubilier Knowles

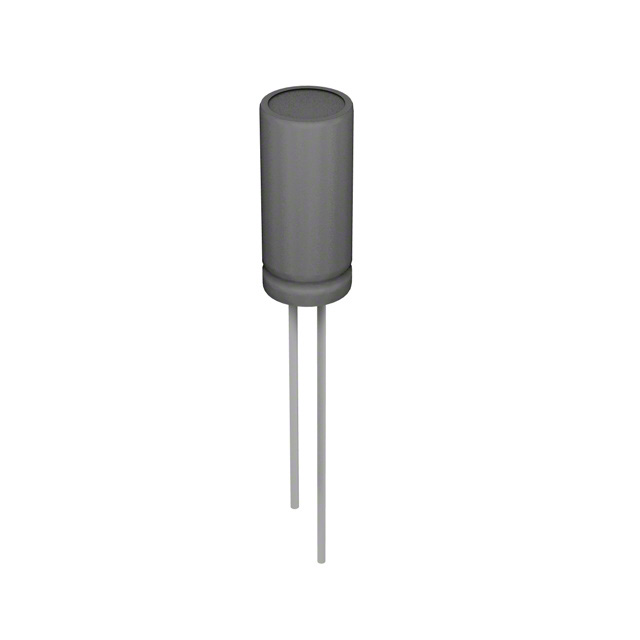

CAP ALUM 10UF 20% 25V RADIAL TH
SH100M025ST
ObsoleteCornell Dubilier Knowles
CAP ALUM 10UF 20% 25V RADIAL TH
Description
General part information
SH100M025ST
10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 21.22Ohm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SH100M025ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 21.22 Ohm |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.079 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 46.8 mA, 39 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
