C1AXS-1636G
ActiveCW Industries
IDC CABLE - CSC16S/AE16G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1AXS-1636G
ActiveCW Industries
IDC CABLE - CSC16S/AE16G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C1AXS-1636G | C1AXS-1 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 14 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
C1AXS-1 Series
IDC CABLE - CSC14S/AE14G/X
| Part | Connector Type | Cable Termination | Number of Positions | Pitch - Cable | Pitch - Cable | Contact Finish | Number of Rows | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Length [x] | Length [x] | Shielding | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries C1AXS-1436G | Socket to Cable | IDC | 14 | 0.05 " | 1.27 mm | Tin | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 3 ft | 914.4 mm | Unshielded | ||
CW Industries C1AXS-1636G | Socket to Cable | IDC | 0.05 " | 1.27 mm | Tin | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 3 ft | 914.4 mm | Unshielded | 16 | ||
CW Industries C1AXS-1636M | Socket to Cable | IDC | 0.05 " | 1.27 mm | Tin | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 3 ft | 914.4 mm | Unshielded | 16 | Multiple, Ribbon | |
CW Industries C1AXS-1036G | Socket to Cable | IDC | 10 | 0.05 " | 1.27 mm | Tin | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 3 ft | 914.4 mm | Unshielded | ||
CW Industries C1AXS-1036M | Socket to Cable | IDC | 10 | 0.05 " | 1.27 mm | Tin | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | 3 ft | 914.4 mm | Unshielded | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.14 | |
| 10 | $ 5.47 | |||
| 25 | $ 4.94 | |||
| 50 | $ 4.58 | |||
| 100 | $ 4.25 | |||
| 250 | $ 3.86 | |||
| 500 | $ 3.60 | |||
| 1000 | $ 3.36 | |||
| 2500 | $ 3.08 | |||
Description
General part information
C1AXS-1 Series

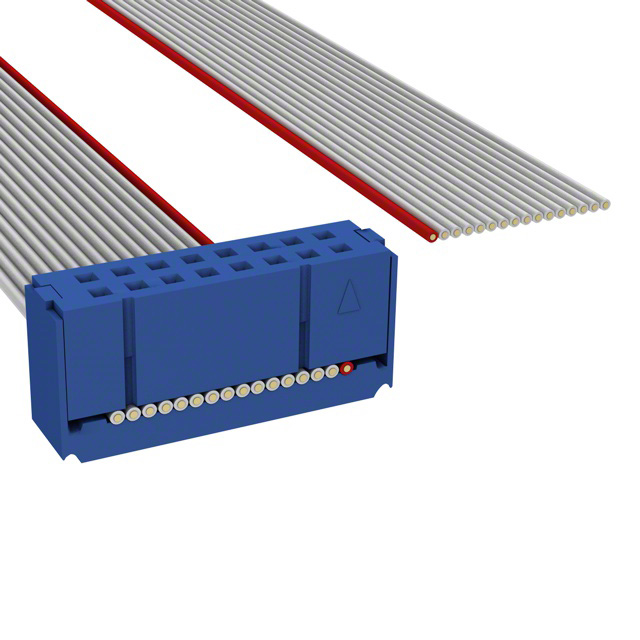

16 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
