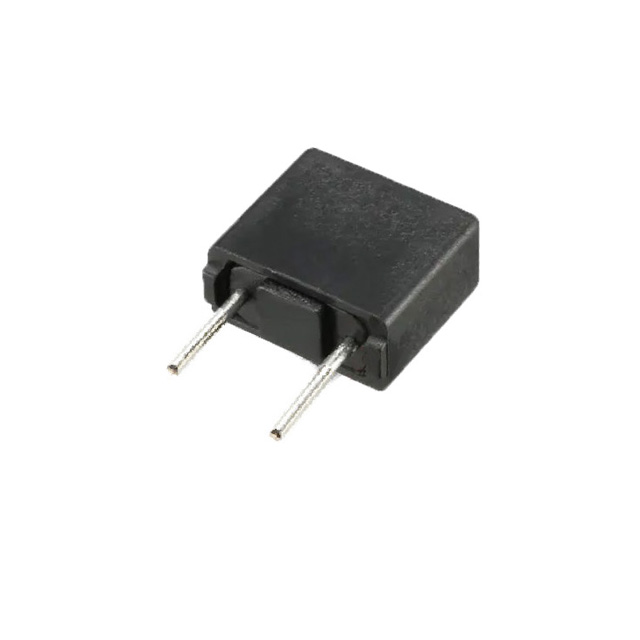

TMS-R-125MA
ActiveOptiFuse
FUSE BRD MNT 125MA 250VAC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMS-R-125MA
ActiveOptiFuse
FUSE BRD MNT 125MA 250VAC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS-R-125MA |
|---|---|
| Approval Agency | UL 248 |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 125 mA |
| Fuse Type | Board Mount |
| Melting I˛t | 0.044 |
| Mounting Type | Through Hole |
| Package / Case | Vertical, Radial, Can |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.335 " |
| Size / Dimension [x] | 8.5 mm |
| Size / Dimension [y] | 0.17 in |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [z] | 8.55 mm |
| Size / Dimension [z] | 0.337 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.14 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.62 | |||
Description
General part information
TMS-R-125MA
125 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
