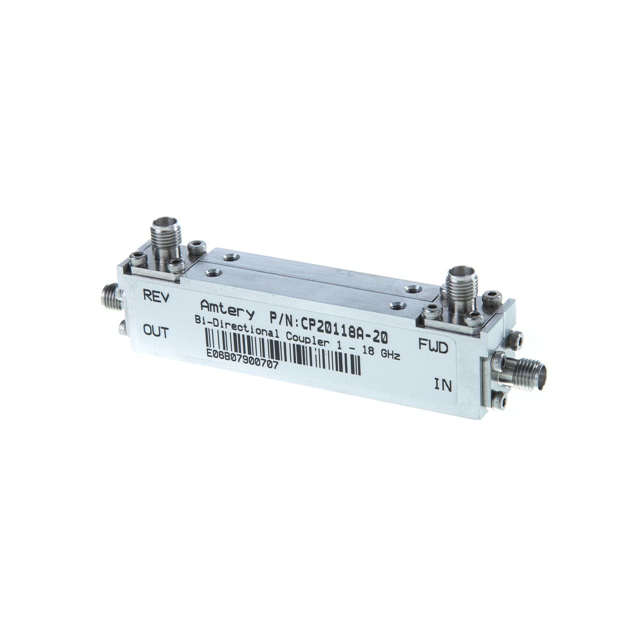

CP20118A-20
ActiveAmtery Corporation
1 GHZ - 18 GHZ, 20 DB COUPLING
CP20118A-20
ActiveAmtery Corporation
1 GHZ - 18 GHZ, 20 DB COUPLING
Description
General part information
CP20118A-20
RF Directional Coupler General Purpose 1GHz ~ 18GHz 20dB 20W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | CP20118A-20 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 1 GHz |
| Insertion Loss | 0.7 dB |
| Isolation | 43 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Max | 20 W |
| Return Loss | 26 dB |
