GS-115-0033

Active

CW Industries

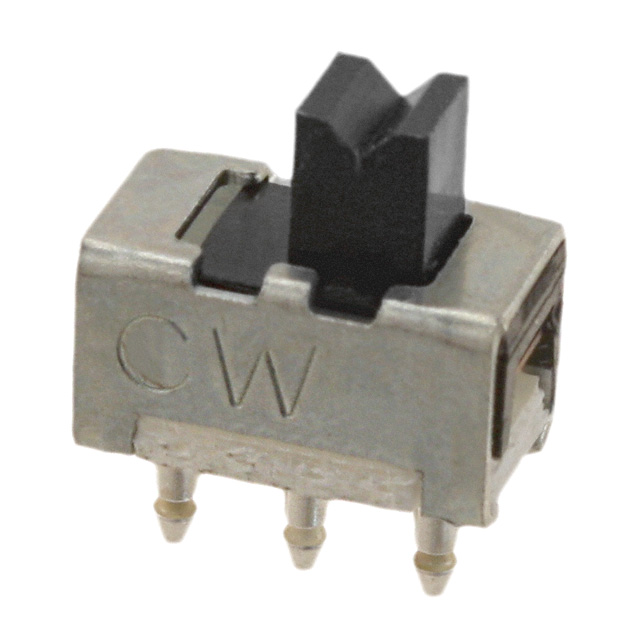

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

GS-115-0033

Active

CW Industries

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GS-115-0033

Actuator Length [x]	3.56 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	500 mA
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On
Switch Travel	2.67 mm
Termination Style	Press-Fit
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

GS-115 Series

Part	Voltage Rating - AC	Voltage Rating - DC	Contact Finish	Current Rating (Amps)	Mechanical Life	Termination Style	Actuator Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Switch Function	Contact Material	Circuit	Actuator Type	Contact Timing	Actuator Length [x]
CW Industries GS-115-0107	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)	Through Hole	104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.56 mm
CW Industries GS-115-0105	125 V	125 VDC	Silver	500 mA	10000 Steps	Press-Fit	Nylon 6/6 Polyamide (PA66)	Through Hole	104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.18 mm
CW Industries GS-115-0064	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)		104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.56 mm
CW Industries GS-115-0089	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)	Through Hole	104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	4.29 mm
CW Industries GS-115-0066	125 V	125 VDC	Silver	500 mA	10000 Steps	Press-Fit	Nylon 6/6 Polyamide (PA66)		104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.18 mm
CW Industries GS-115-0511	125 V	125 VDC	Silver	500 mA	10000 Steps	Solder Lug	Nylon 6/6 Polyamide (PA66)		104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.18 mm
CW Industries GS-115-0072	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)		104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.56 mm
CW Industries GS-115-0047	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)	Through Hole	104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.18 mm
CW Industries GS-115-0097	125 V	125 VDC	Silver	500 mA	10000 Steps	Press-Fit	Nylon 6/6 Polyamide (PA66)		104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	4.75 mm
CW Industries GS-115-0054	125 V	125 VDC	Silver	500 mA	10000 Steps	PC Pin	Nylon 6/6 Polyamide (PA66)	Through Hole	104 °C	-10 °C	2.67 mm	On-On	Copper Alloy	SPDT	Standard	Not Specified	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.73
		10	$ 2.21
		25	$ 2.04
		100	$ 1.79
		250	$ 1.64
		500	$ 1.53
		1000	$ 1.43
		2500	$ 1.41

Description

General part information

GS-115 Series

Slide Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available
