RO3ISMNM
ActivePulse Electronics
RF ANT 435MHZ/895GHZ WHIP STR N
RO3ISMNM
ActivePulse Electronics
RF ANT 435MHZ/895GHZ WHIP STR N
Description
General part information
RO3ISMNM

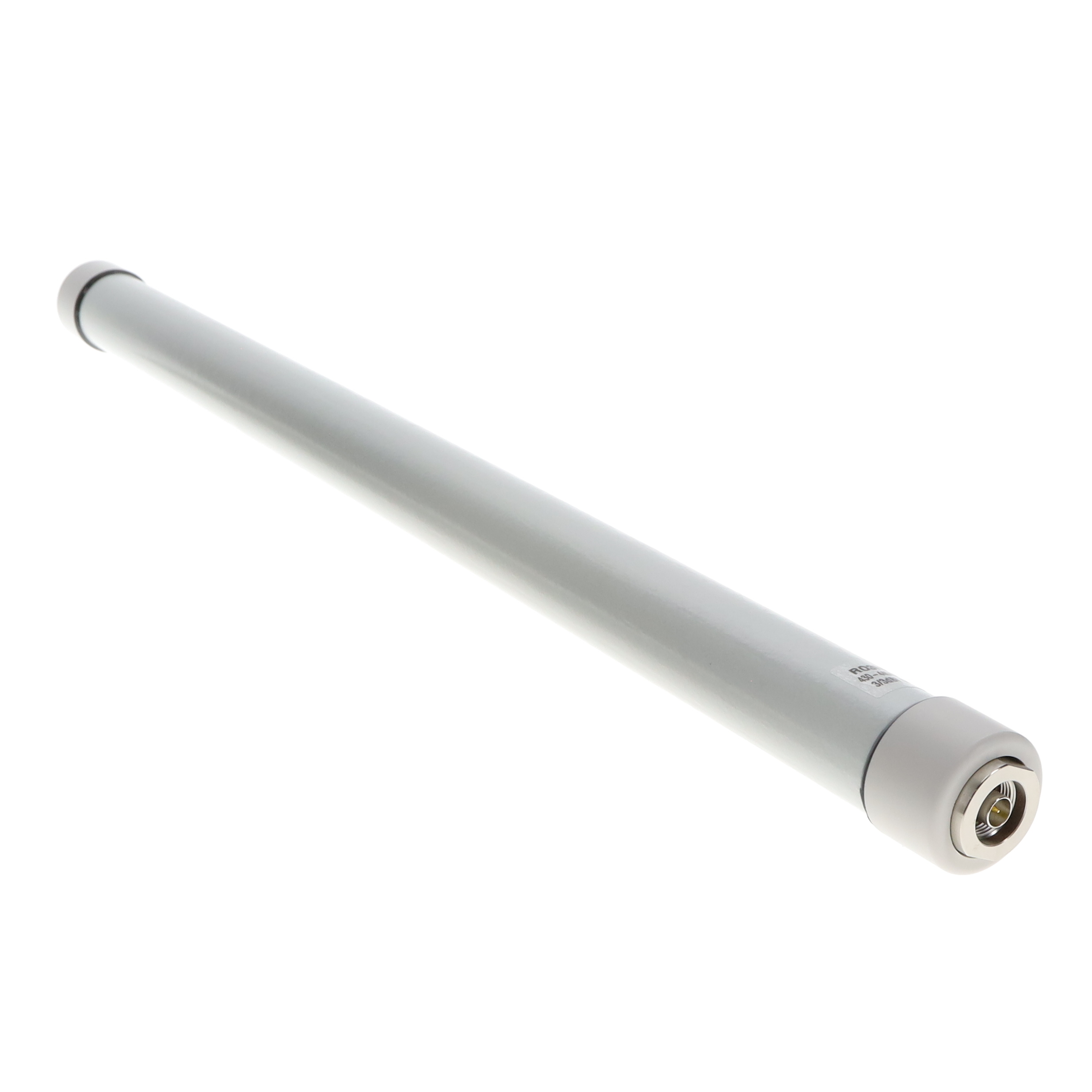

RF ANTENNA ISM Whip, Straight N Type Male Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RO3ISMNM |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | ISM |
| Frequency (Band) | 895 GHz |
| Frequency (Center) | 435 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Band 1) Maximum | 440 MHz |
| Frequency Range (Band 1) Minimum | 430 MHz |
| Frequency Range (Band 2) Maximum | 930 MHz |
| Frequency Range (Band 2) Minimum | 860 MHz |
| Gain | 2 dBi, 2.5 dBi |
| Height (Max) | 21.299 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 2 |
| Power - Max | 20 W |
| RF Family/Standard | General ISM |
| Termination Type | N Type Male |
| VSWR | 2 |
