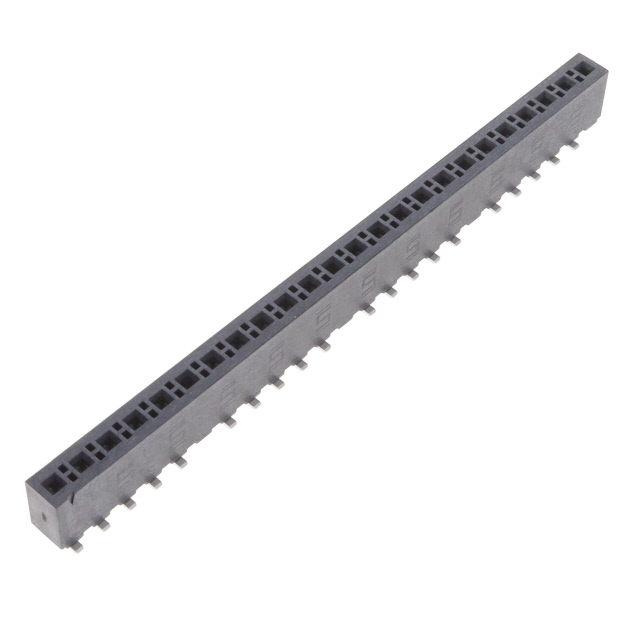

FHP-24 Series

Part	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Termination	Contact Finish - Post	Pitch - Mating	Mounting Type	Insulation Color	Number of Rows	Fastening Type	Number of Positions	Features	Number of Positions Loaded	Style	Insulation Height	Contact Type	Contact Shape	Insulation Material	Contact Material
Samtec Inc. FHP-09-02-T-S-A-K-TR	Tin	-55 °C	105 °C	Receptacle	Solder	Tin	0.156 in	Surface Mount	Black	1	Push-Pull	9	Board Guide Pick and Place	All	Board	0.368 in	Female Socket	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze
Samtec Inc. FHP-09-02-T-S-K	Tin	-55 °C	105 °C	Receptacle	Solder	Tin	0.156 in	Surface Mount	Black	1	Push-Pull	9	Pick and Place	All	Board	0.368 in	Female Socket	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze
Samtec Inc. FHP-09-02-TM-S-A-K	Tin	-55 °C	105 °C	Receptacle	Solder	Tin	0.156 in	Surface Mount	Black	1	Push-Pull	9	Board Guide Pick and Place	All	Board	0.368 in	Female Socket	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze
Samtec Inc. FHP-09-02-T-S-A	Tin	-55 °C	105 °C	Receptacle	Solder	Tin	0.156 in	Surface Mount	Black	1	Push-Pull	9	Board Guide	All	Board	0.368 in	Female Socket	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
