B41042A2688M
ObsoleteEPCOS - TDK Electronics

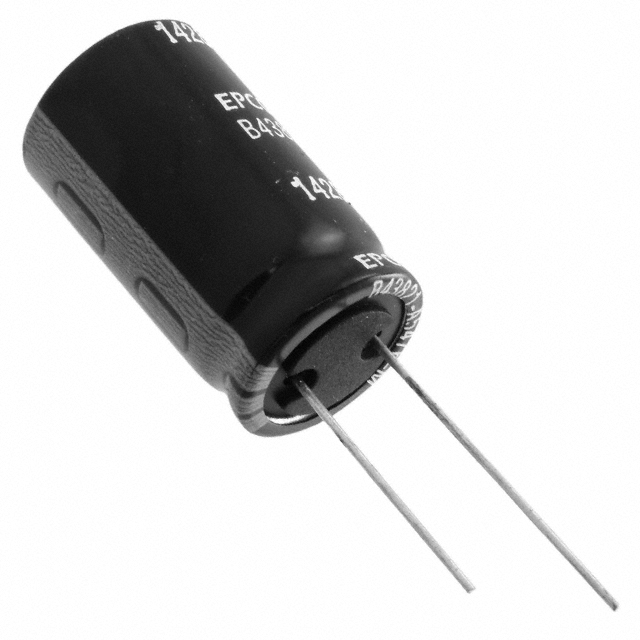

CAP ALUM 6800UF 20% 6.3V RADIAL
B41042A2688M
ObsoleteEPCOS - TDK Electronics
CAP ALUM 6800UF 20% 6.3V RADIAL
Description
General part information
B41042A2688M
6800 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41042A2688M |
|---|---|
| Applications | General Purpose |
| Capacitance | 6800 µF |
| Height - Seated (Max) | 1.319 in |
| Impedance | 56 mOhm |
| Lead Spacing | 0.295 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.138 A, 2.376 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
